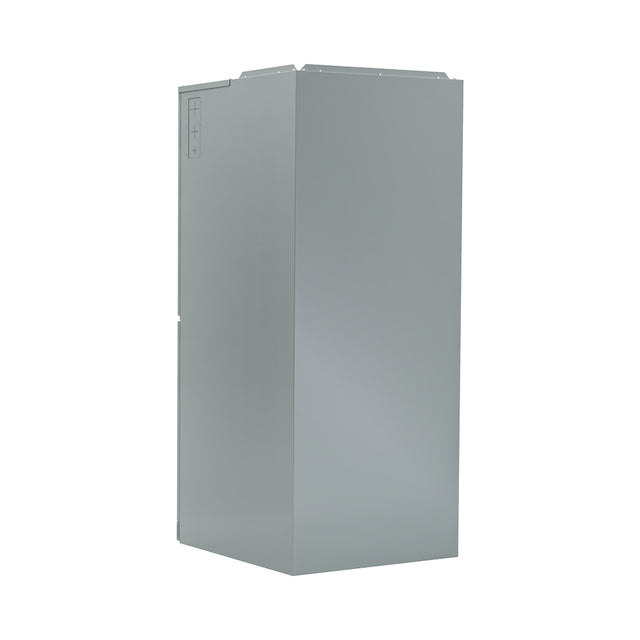

MRCOOL VersaPro Model : MVP-48-HP-MUAH-230A00-O
MRCOOL VersaPro 4 Ton Central Ducted Air Handler – Efficient, Reliable Heating & Cooling
Upgrade your home’s HVAC system with the MRCOOL VersaPro 4 Ton Central Ducted Air Handler, designed for year-round comfort and energy efficiency. With a SEER2 rating of 16.5, this unit effectively heats and cools spaces up to 2,000 sq. ft., making it an ideal modern replacement for outdated systems.
Built for durability, it features a painted galvanized steel exterior and a self-diagnostics panel for easy maintenance. Flexible installation options—including upflow, downflow, and horizontal configurations—ensure compatibility with various layouts.
This air handler uses eco-friendly R-454B refrigerant and supports an optional heat kit for extra warmth. It pairs seamlessly with the MRCOOL Central Ducted Hyper Heat Condenser for maximum efficiency. The included MRCOOL Smart Thermostat and SmartHVAC app compatibility allow for precise temperature control and remote access.
Backed by a 10-year warranty, the VersaPro 4 Ton Air Handler is a cost-effective, high-performance solution for enhancing home comfort and energy savings.
CFM
|
1600.99/1471.50/1283.15/1094.80
|
TONNAGE
|
4
|
COOLING CAPACITY (BTU)
|
48000
|
HEATING CAPACITY (BTU)
|
48000
|
VOLTAGE (V)
|
115/208-230
|
PHASE
|
1
|
CYCLE
|
60
|
MAX FUSE BREAKER (A)
|
15
|
MIN CIRCUIT AMPACITY (A)
|
14.5/11.0
|
COLOR
|
gray
|
DECIBEL RATING LOW (DBA)
|
44
|
DECIBEL RATING HIGH (DBA)
|
53
|
NUMBER OF SPEEDS
|
3
|
MAX LINESET LENGTH (FT)
|
246 ft
|
LIQUID LINE SIZE
|
3/8
|
SUCTION LINE SIZE
|
3/4
|
FILTER TYPE
|
Replaceable
|
FILTER SIZE
|
23x20x1
|
AUXILIARY HEATER INCLUDED
|
No
|
AUXILIARY HEATER AVAILABLE
|
Yes
|
AUXILIARY HEATER SIZES
|
8kW/10kW/15kW/20kW
|
ADJUSTABLE THERMOSTAT
|
Yes
|
WIFI COMPATIBILITY
|
Yes
|
APP COMPATIBILITY
|
Yes
|
ETL CERTIFIED
|
Yes
|
ENERGY STAR CERTIFIED
|
Yes
|
AHRI CERTIFIED
|
Yes
|
BASE PARTS WARRANTY
|
10 Years
|
BASE COMPRESSOR WARRANTY
|
10 Years
|
CONTAINS ELECTRONICS
|
Yes
|
CONTAINS CHEMICALS
|
Yes
|
CONTAINS COMPRESSED GAS
|
Yes
|
NET DEPTH (IN)
|
24.49
|
NET HEIGHT (IN)
|
52.99
|
NET WIDTH (IN)
|
21.02
|
NET WEIGHT (LBS)
|
162.92
|
GROSS DEPTH (IN)
|
26.77
|
GROSS HEIGHT (IN)
|
56.5
|
GROSS WIDTH (IN)
|
27.95
|
GROSS WEIGHT (LBS)
|
190.92
|
