MRCOOL DIY Mini Split 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP12121218
MRCOOL DIY Mini Split 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP12121218 is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
We provide Free Shipping
Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!
Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!
Email us at : sales@acunitsforless.com
Call us at : 678-672-0213
Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States
MRCOOL DIY Mini Split 54,000 BTU 4 Zone Ductless Air Conditioner an...
Not Sure Which Mini Split System Is Right for You?
Talk with one of our trusted comfort advisor today!
Description
Description
Model: DIY-B-448HP12121218
MR COOL Specifications Sheet Click below:
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
Product Overview:
- Covers 2250 sq. ft.
- DIY Installation
- Wall Mounted
- Number of Zones: 4
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F
Product Description:
This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, 9K, two 12K and one 18K BTU Wall Mount Air Handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.
This product does not have the lineset and communication wire for each air handler. Scroll up to add them!

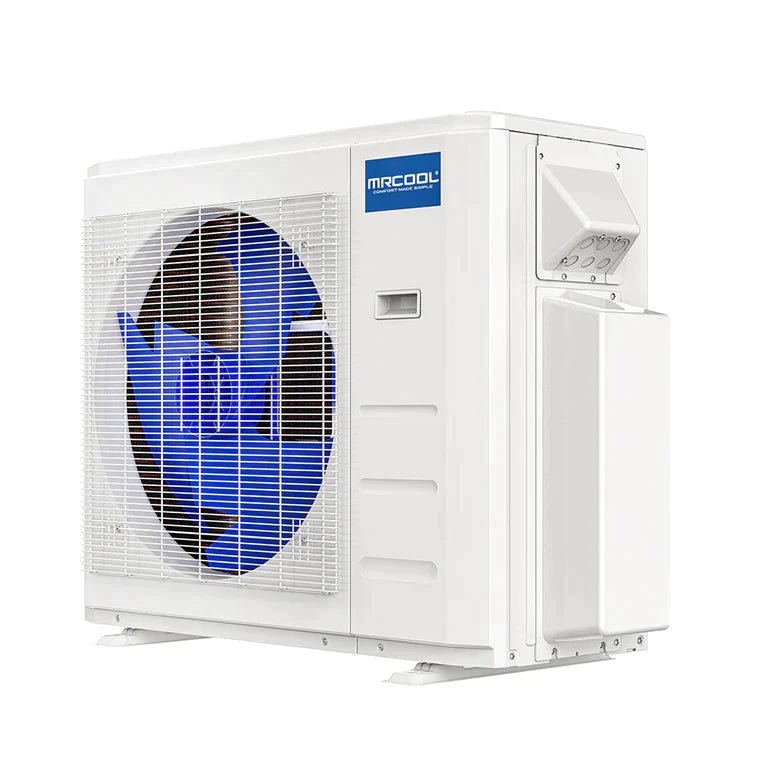

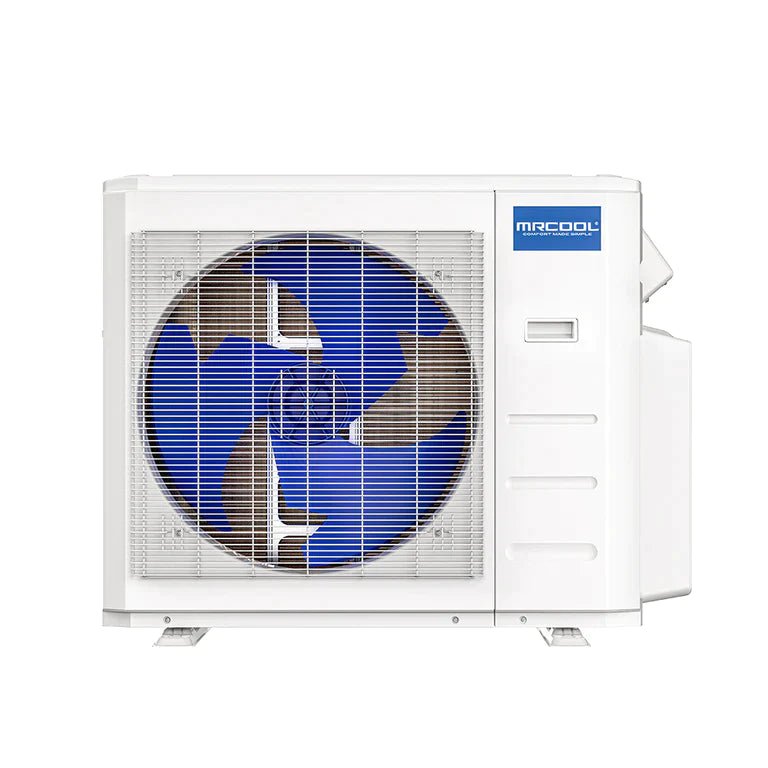

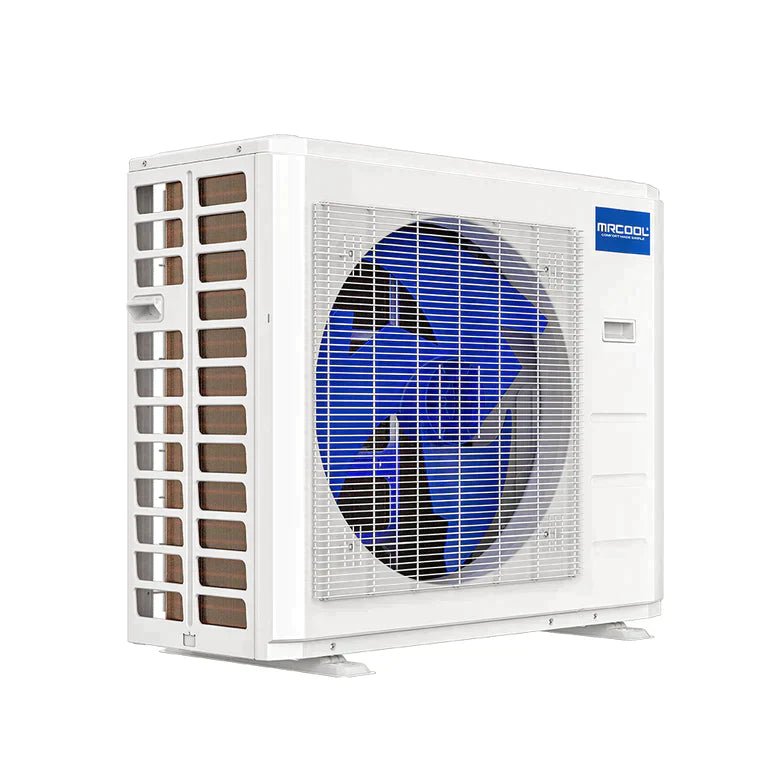

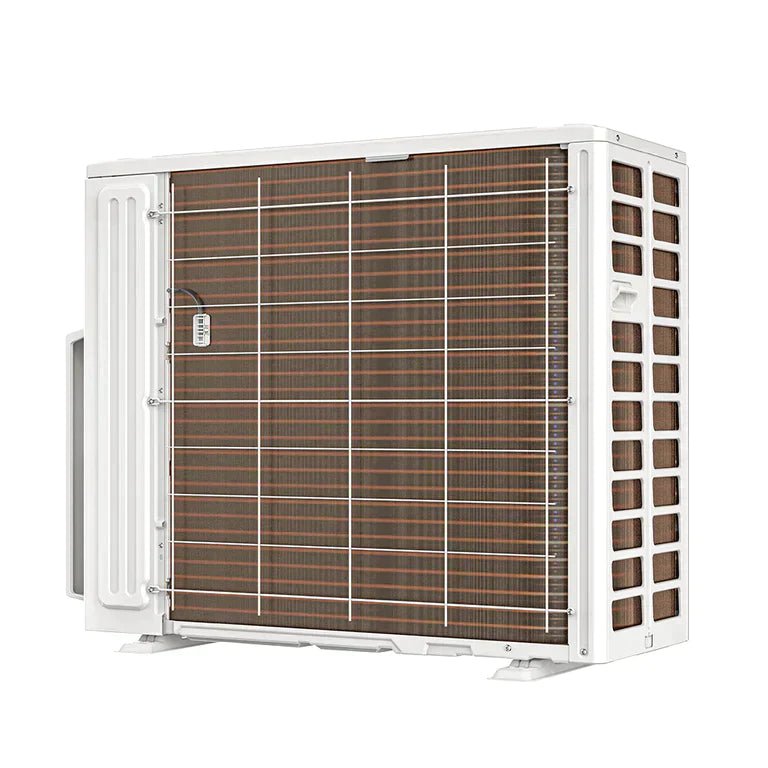

Condenser 48K BTU
- Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
- Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
- Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

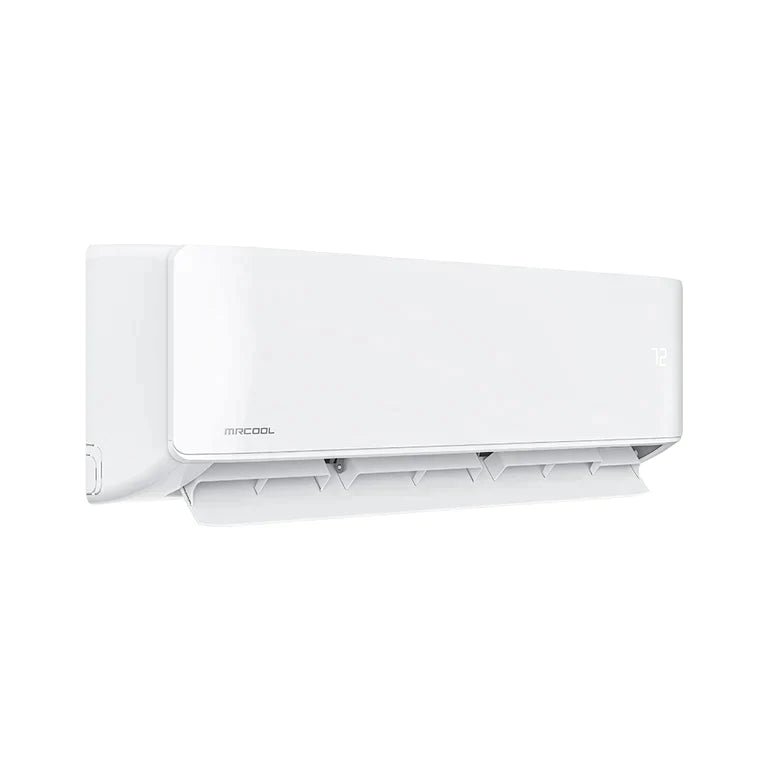

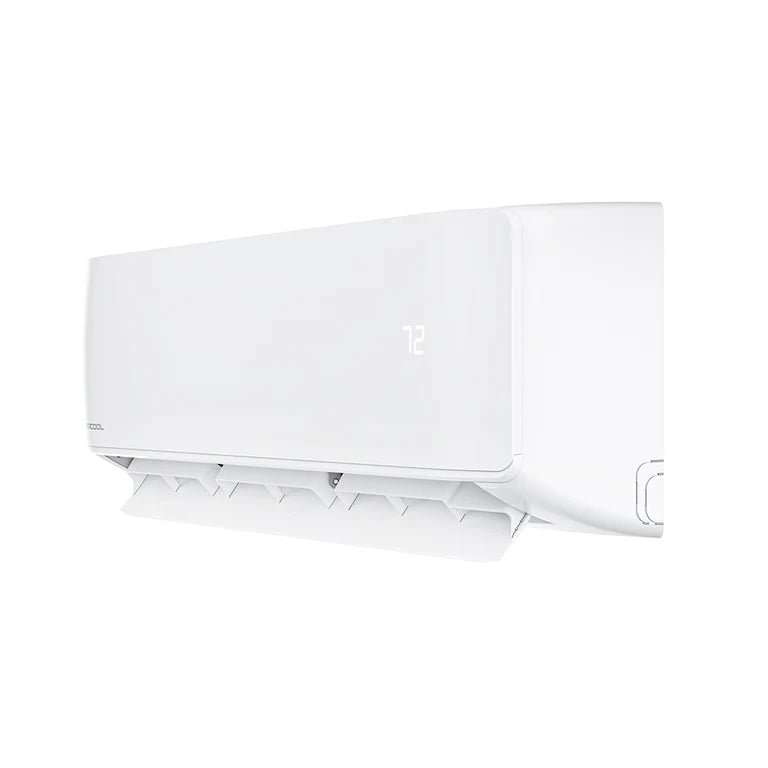

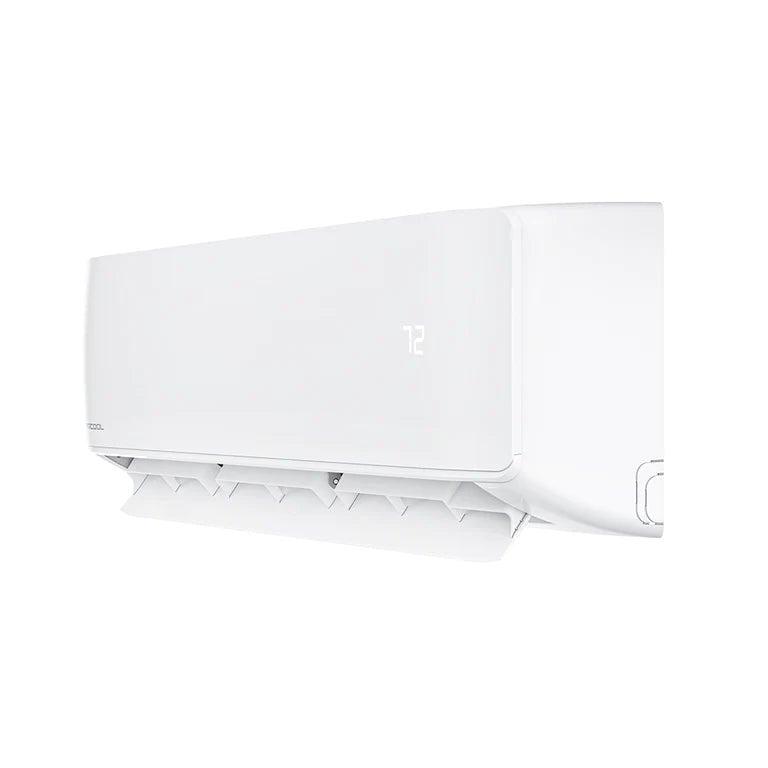

Air Handler 9K BTU
- Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler 12K BTU
- Large Coverage Area. The air handler covers an area between 250 to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler 18K BTU
- Large Coverage Area. The air handler covers an area between 375 to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
SPECIFICATIONS AND DIMENSIONS:
Condenser
| Product Dimensions |
37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 12K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
COVERAGE AREA:
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
