MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218
MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218 is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
We provide Free Shipping
Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!
Need help with choosing a Mini Split system or have other questions?Talk with one of our trusted HVAC professionals today!
Email us at : sales@acunitsforless.com
Call us at : 678-672-0213
Physical Address : Unit 1284, 2210 Holly Springs Parkway, Holly Springs, Georgia 30142, United States
MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner an...
Not Sure Which Mini Split System Is Right for You?
Talk with one of our trusted comfort advisor today!
Description
Description
Model: DIY-B-448HP09121218
MR COOL Specifications Sheet Click below:
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
Product Overview:
- Covers 2125 sq. ft.
- DIY Installation
- Wall Mounted
- Number of Zones: 4
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F
Product Description:

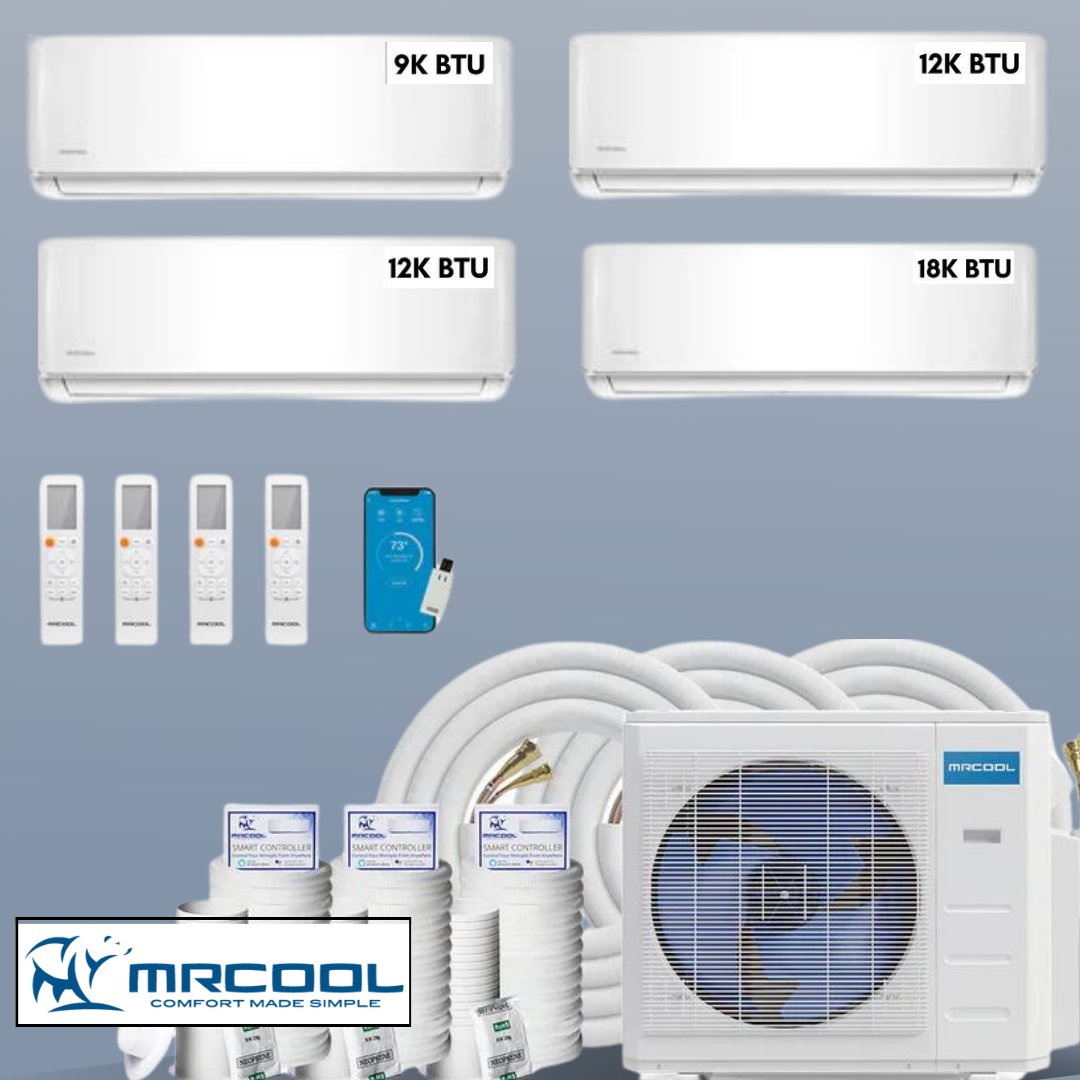

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, 9K, two 12K and one 18K BTU Wall Mount Air Handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.
This product does not have the lineset and communication wire for each air handler. Scroll up to add them!

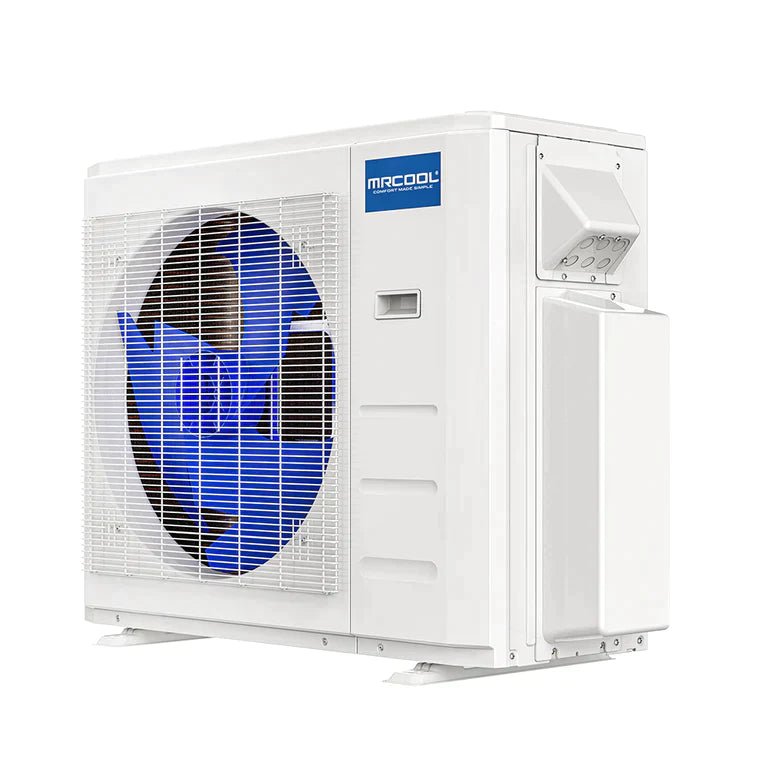

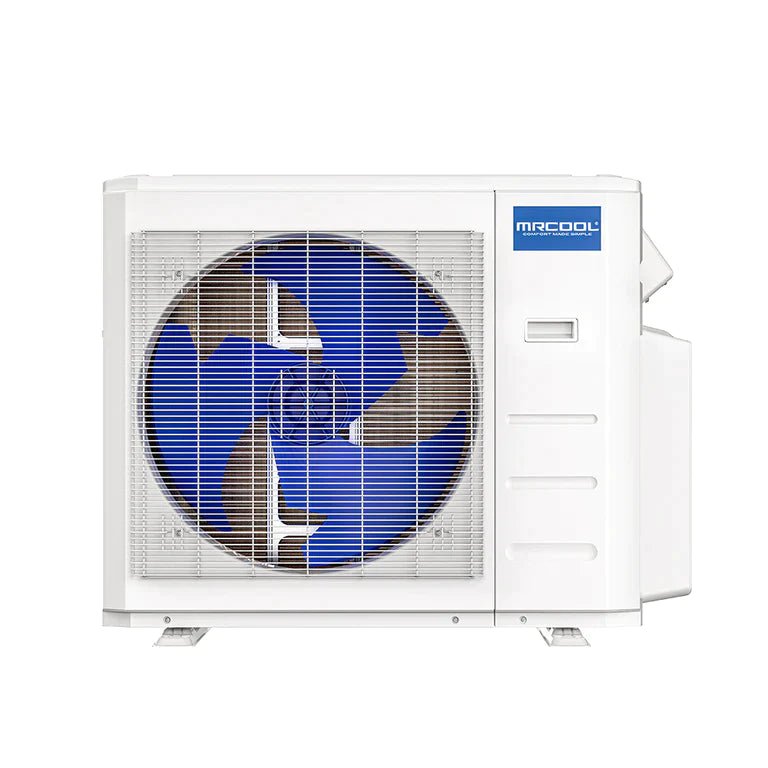

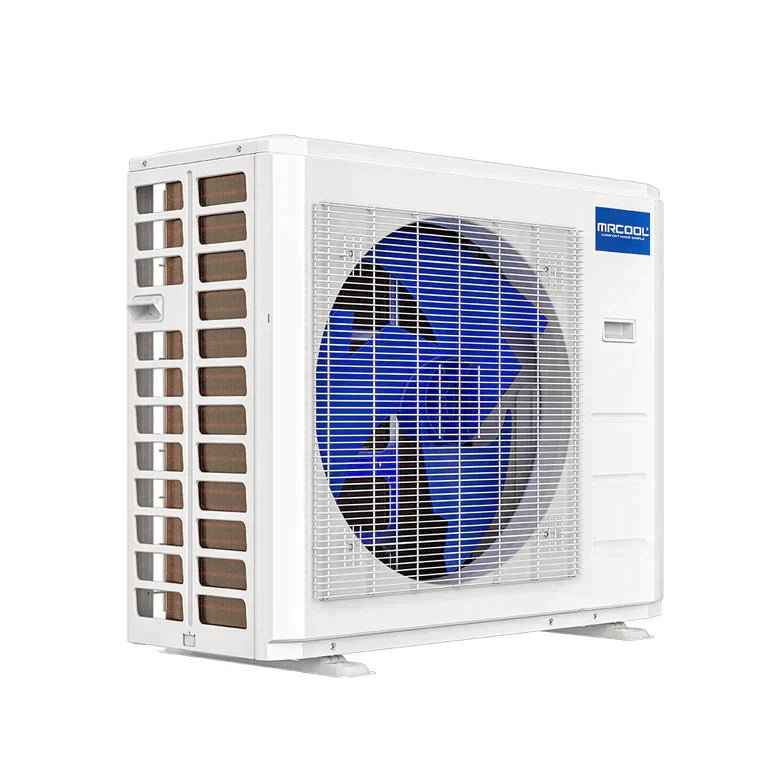

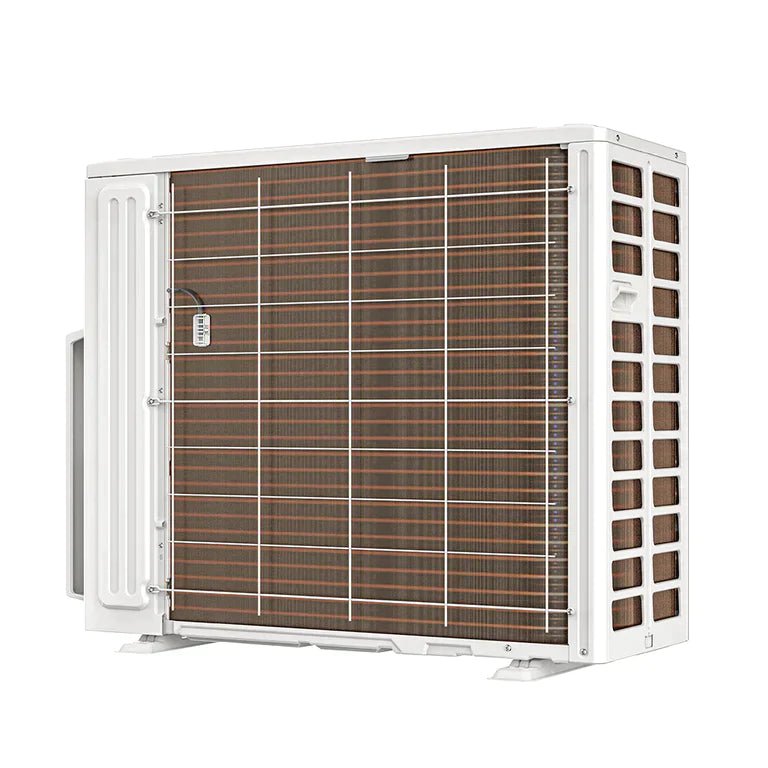

Condenser 48K BTU
- Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
- Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
- Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!

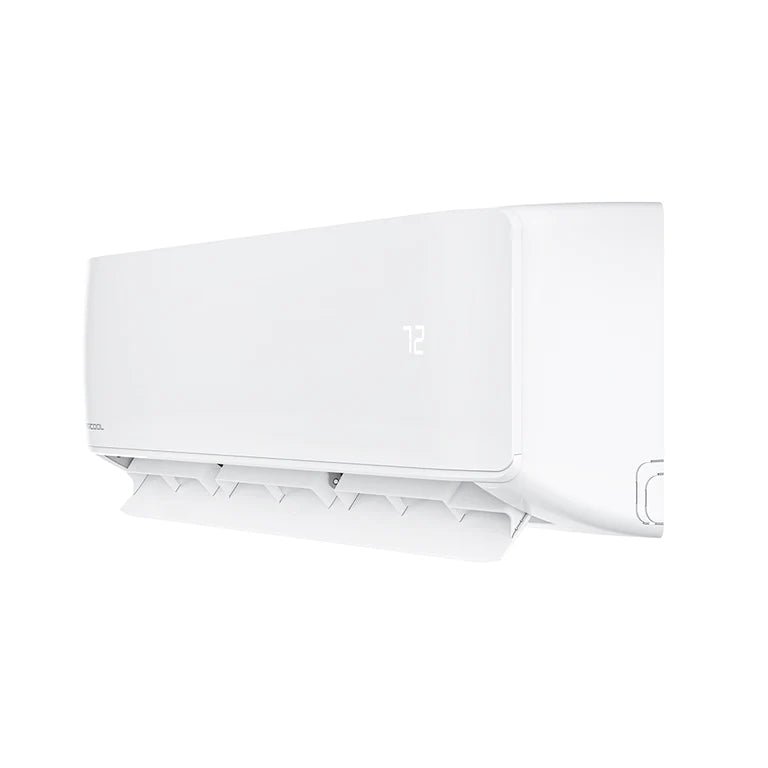

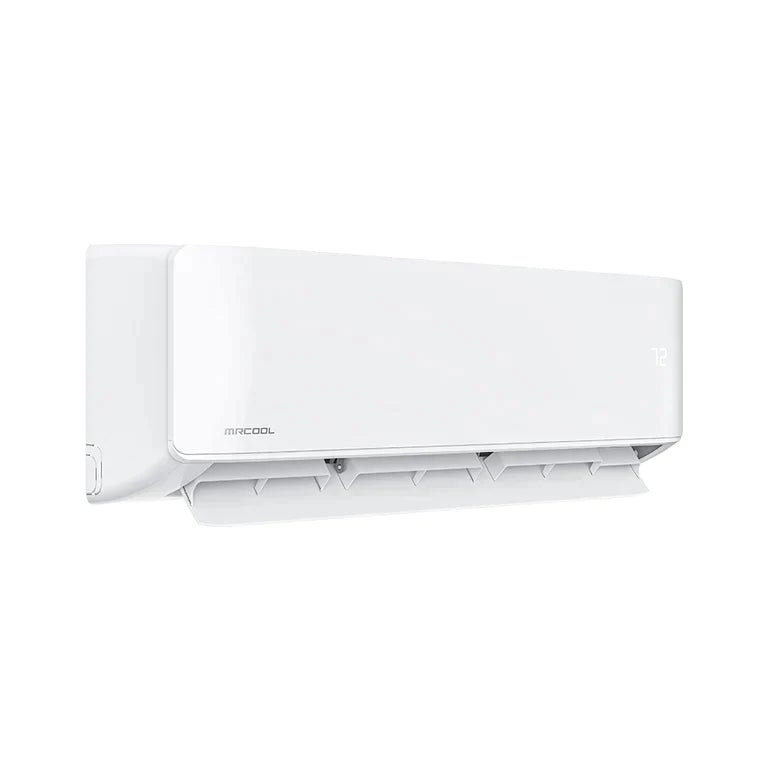

Air Handler 9K BTU
- Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler 12K BTU
- Large Coverage Area. The air handler covers an area between 250 to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler 18K BTU
- Large Coverage Area. The air handler covers an area between 375 to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
SPECIFICATIONS AND DIMENSIONS:
Condenser
| Product Dimensions |
37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 12K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
COVERAGE AREA:
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
Reviews (0)
Reviews (0)
FAQ's for MR COOL
FAQ's for MR COOL
-
What is the SEER rating of this unit?
SEER (Seasonal Energy Efficiency Ratio) is a measure of the efficiency of your air conditioning system. The higher the SEER rating, the more energy-efficient the unit. This MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218 has a SEER rating of 21.0.
-
What size air conditioner do I need for my home?
Choosing the right size unit depends on the square footage of your home. For example:
• Up to 1,200 sq. ft. – 1.5 to 2 tons
• 1,200 to 1,600 sq. ft. – 2 to 3 tons
• 1,600 to 2,100 sq. ft. – 3 to 4 tons
Our experts can help you determine the best size based on your specific needs.
-
Is this unit compatible with my existing system?
The MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218 is compatible with a variety of HVAC systems. For specific compatibility with your current setup, please consult with our support team or refer to the product manual.
-
How long is the warranty for this unit?
This unit comes with a manufacturer warranty of Manufactured warranty. You can also purchase extended warranties for added peace of mind.
-
How energy efficient is this unit?
The MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218 is designed to be highly energy efficient, which can help reduce your electricity bills. With a SEER rating of 21.0, it meets or exceeds federal efficiency standards.
-
What maintenance does this unit require?
Regular maintenance includes cleaning or replacing air filters, inspecting ducts for leaks, and scheduling annual professional tune-ups. Following the manufacturer’s maintenance guidelines will ensure optimal performance.
-
Can I install this unit myself, or do I need a professional?
We recommend professional installation for the MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218 to ensure that it functions correctly and maintains its warranty. Improper installation can lead to performance issues and may void the warranty.
-
How long does shipping take?
Standard shipping takes between 3-4 Days, depending on your location. Expedited shipping options are also available.
-
Are there financing options available?
Yes, we offer financing options through Shopify. Visit our financing page or contact us for more information on available plans.
-
What are the noise levels of this unit?
The MRCOOL DIY Mini Split 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09121218 operates at approximately decibels, making it relatively quiet during operation. Noise levels may vary depending on the unit’s location and installation.
-
Does this unit qualify for any rebates or incentives?
Depending on your location, you may be eligible for local or federal rebates for purchasing energy-efficient HVAC systems. Check with your local energy provider or government for available programs.
-
What refrigerant does this unit use?
The DIY-B-448HP09121218 uses , which is environmentally friendly and complies with modern environmental standards.
-
What happens if my unit arrives damaged?
If your unit arrives damaged, please contact us immediately at 678 535 7176. We will arrange for a replacement or repair, depending on the situation.
-
How can I track my order?
Once your order ships, we will send you tracking information via email. You can also log into your account to track the status of your shipment at any time.
