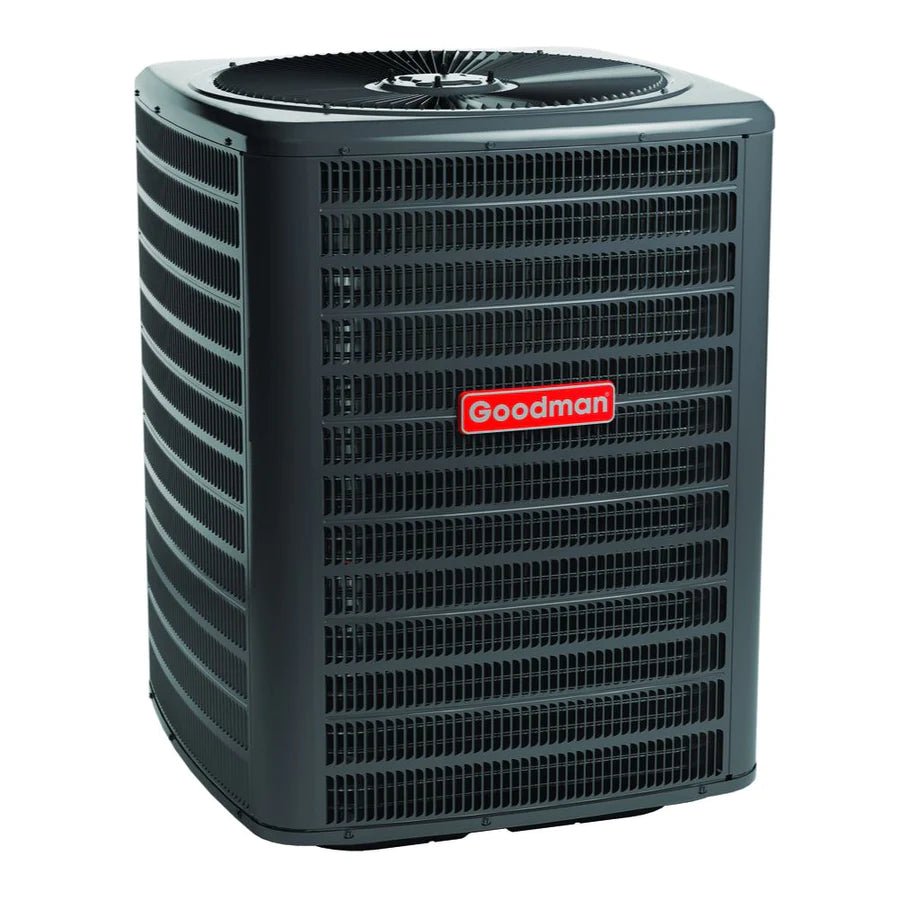

1.5 Ton Goodman 15.2 SEER Single Stage Heat Pump Split System GSZH5...
Description
Description
Model: GSZH501810
Goodman Specifications Sheet Click HERE
Outdoor: GSZH501810
Specifications:
High-Efficiency scroll compressor
SmartShift® technology to ensure quiet reliable defrost
Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T
Factory-installed suction-line accumulator
Factory-installed compressor crankcase heater
Factory-installed high-capacity muffler
High- and low-pressure switches
Service valves with sweat connections and easy access to gauge ports
Fully charged for 15' of tubing length
Contactor with lug connection
Ground lug connection
AHRI Certified
ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand: Goodman
Cabinet Features: Removable grille style top design compliant with UL 60335-2-40
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
Single panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
Class: Split Heat Pump
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 17600
Unit Depth: 29
Unit Height: 39.5
Unit Width: 29
Family Description: High-Efficiency Split System Heat Pump Up to 15.2 SEER2 & 7.8 HSPF2
Heating Capacity Rated: 17400
Max. Voltage: 253
Min. Circuit: 12.2
Min. Voltage: 197
Model Efficiency: 15.2 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Heat Pump
Family: GSZH5
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1.5 tons
Unit Type: Outdoor
Suction Valve Outside Diameter: 3/4
Unit Weight: 171
