Model: GMVC961205DN
Goodman Specifications Sheet Click HERE

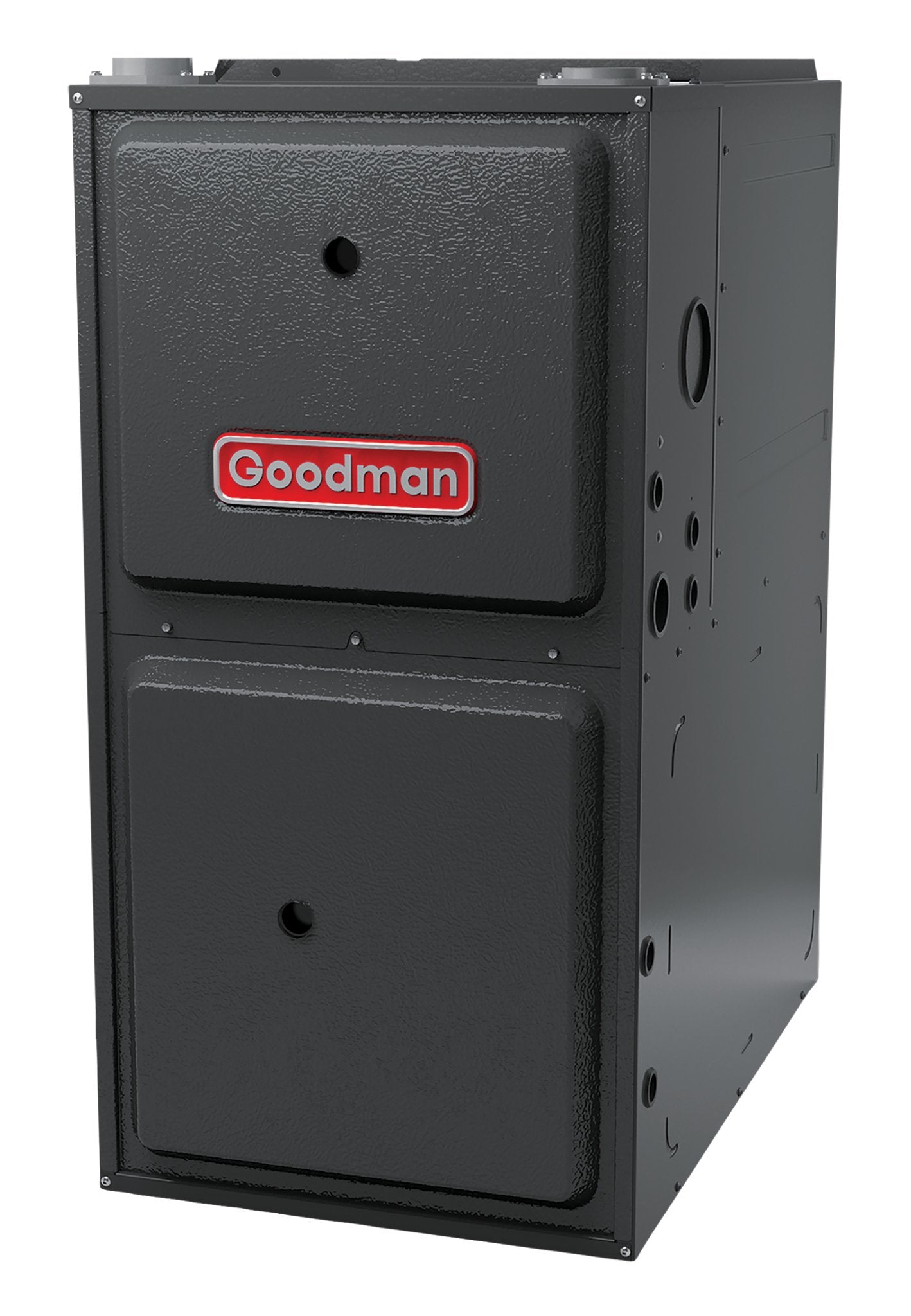

FURNACE: GMVC961205DN
Specifications:
- Heavy-duty aluminized-steel tubular heat exchanger
- Efficient and quiet variable-speed Blower
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Two-Stage gas valve
- All models comply with California 40 ng/J
- AHRI Certified, ETL Listed
- Energy Star
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 79 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
PRODUCT ATTRIBUTES:
AFUE: 96
Brand: Goodman
Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
Class: Gas Furnace
Unit Depth: 29
Unit Height: 34-1/2
Unit Width: 24-1/2
Family Description: ComfortBridge™-Compatible Two-Stage, Variable-Speed ECM Gas Furnace Up to 96% AFUE
High-Fire Input Capacity: 120000
High-Fire Output Capacity: 115320
Min. Circuit: 13.9
Model Efficiency: 0.96
Motor Speed Type: Variable Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
- High reliability and quality
- Airflow system gently ramps up or down according to heating or cooling demand and provides better comfort
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Self-diagnostic control board with constant memory fault code history output
- Provisions for electronic air cleaner and humidifier
- Quiet and Economical heating
- Lower NOx emission
- Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
- Tax Credit
- Operates on two-stage or single-stage thermostats
- Easy Connection for EAC and Humidifier
Category: Gas Furnace
Family: GMVC96
Prop65 Label Required: TRUE
Unit Type: Indoor
