Model: GM9S800805CN
Goodman Specifications Sheet Click HERE

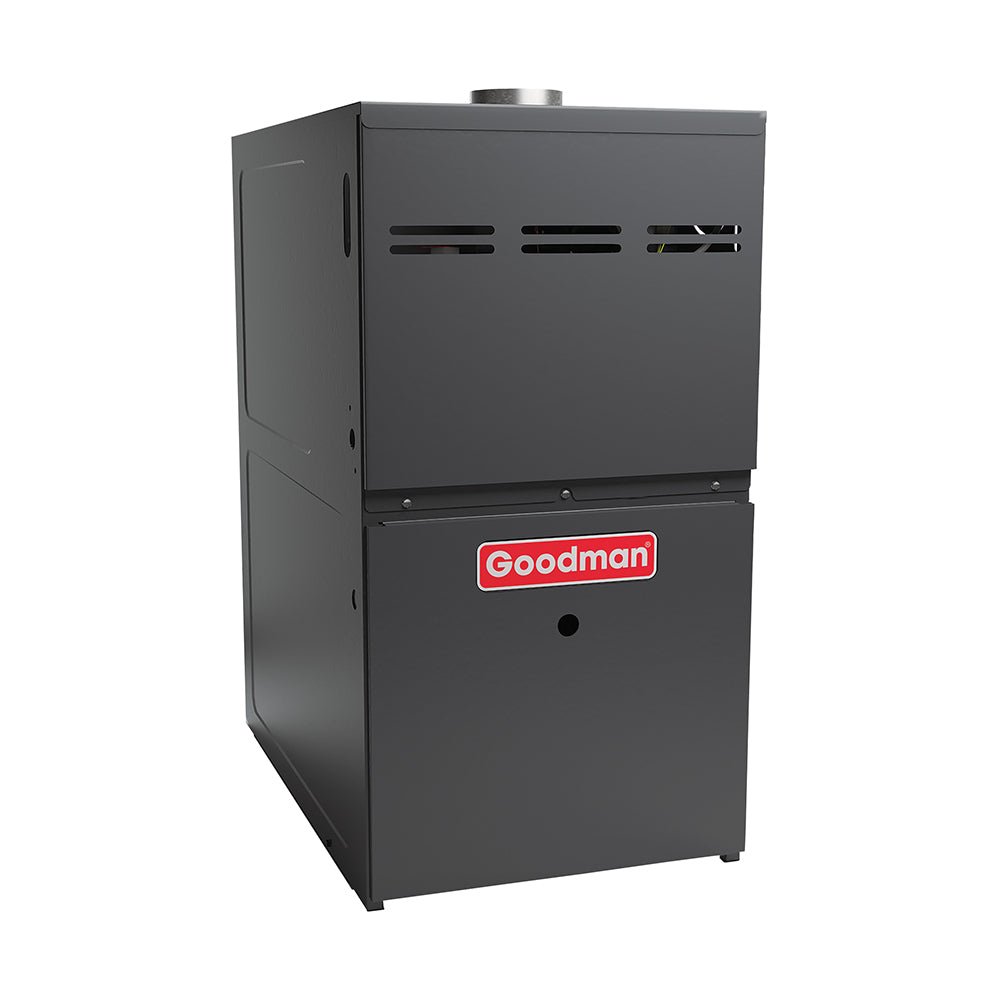

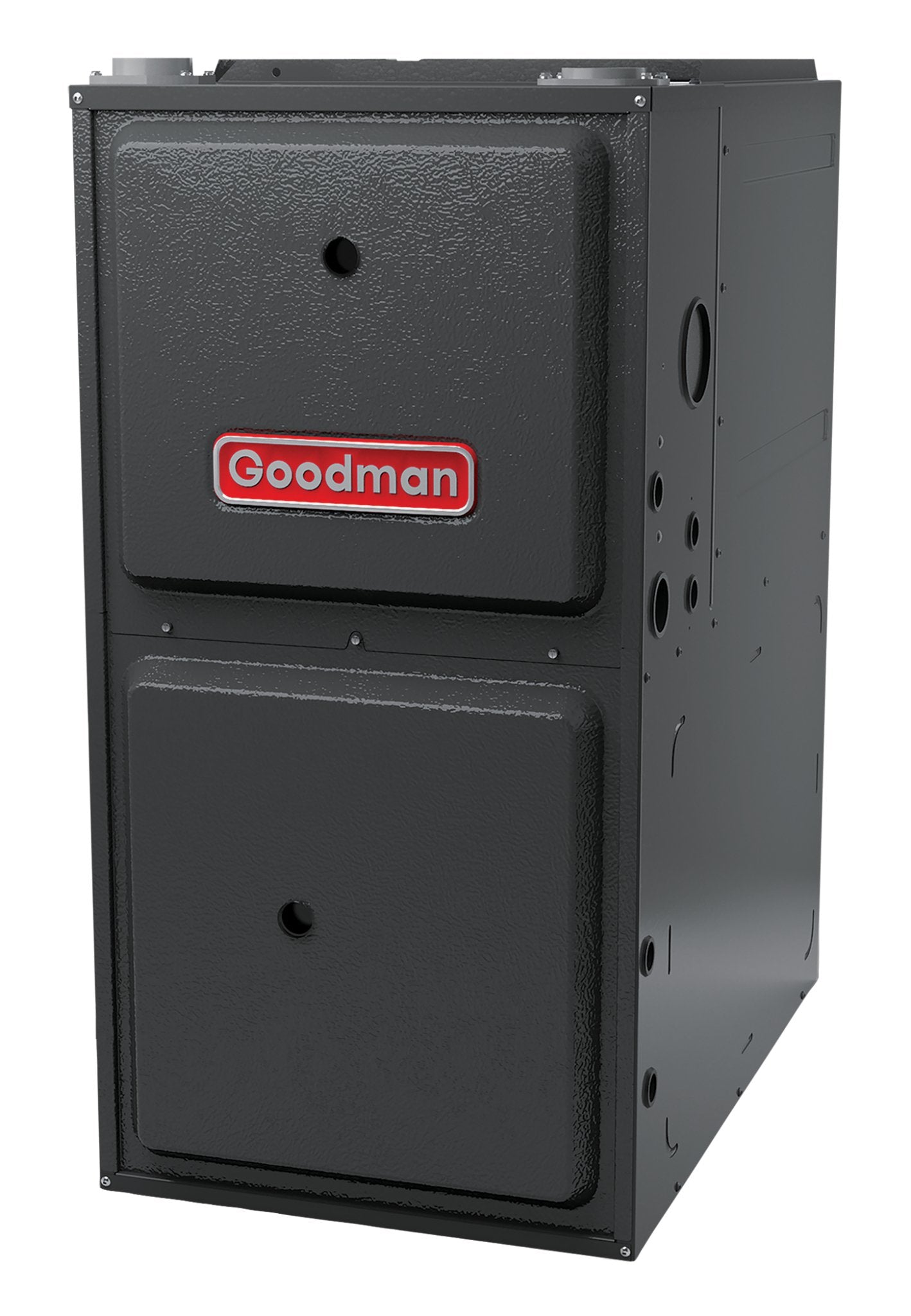

FURNACE: GM9S800805CN
Specifications:
- Heavy-duty aluminized-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Single-Stage gas Valve
- Single-speed inducer draft blower
Warranty:
- Standard warranties apply.
- Standard parts, residential: ALL PARTS - 5 YEARS PARTS
- HEAT EXCHANGER - 20 YEARS PARTS
- Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
- ALL PARTS - 5 YEARS PARTS
- Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
- HEAT EXCHANGER - 20 YEARS PARTS
- Registered parts, residential: ALL PARTS - 10 YEARS PARTS
- HEAT EXCHANGER - LIFETIME PARTS
- Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
- HEAT EXCHANGER - 20 YEARS PARTS
- Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
- HEAT EXCHANGER - 20 YEARS PARTS
PRODUCT ATTRIBUTES:
AFUE: 80
Airflow Rate High Heating: 1270
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 21
Family Description: Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE
High-Fire Input Capacity: 80000
High-Fire Output Capacity: 64,000
Min. Circuit: 12.45
Model Efficiency: 0.8
Motor Speed Type: Nine Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits: High reliability and quality
Durable and long-igniter life
Provisions for electronic air cleaner and humidifier
Energy Efficient and quiet circulation
Self-diagnostic control board with constant memory
Simple installation and setup
Quiet and simple operation
Category: Gas Furnace
Family: GM9S80
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 132
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
