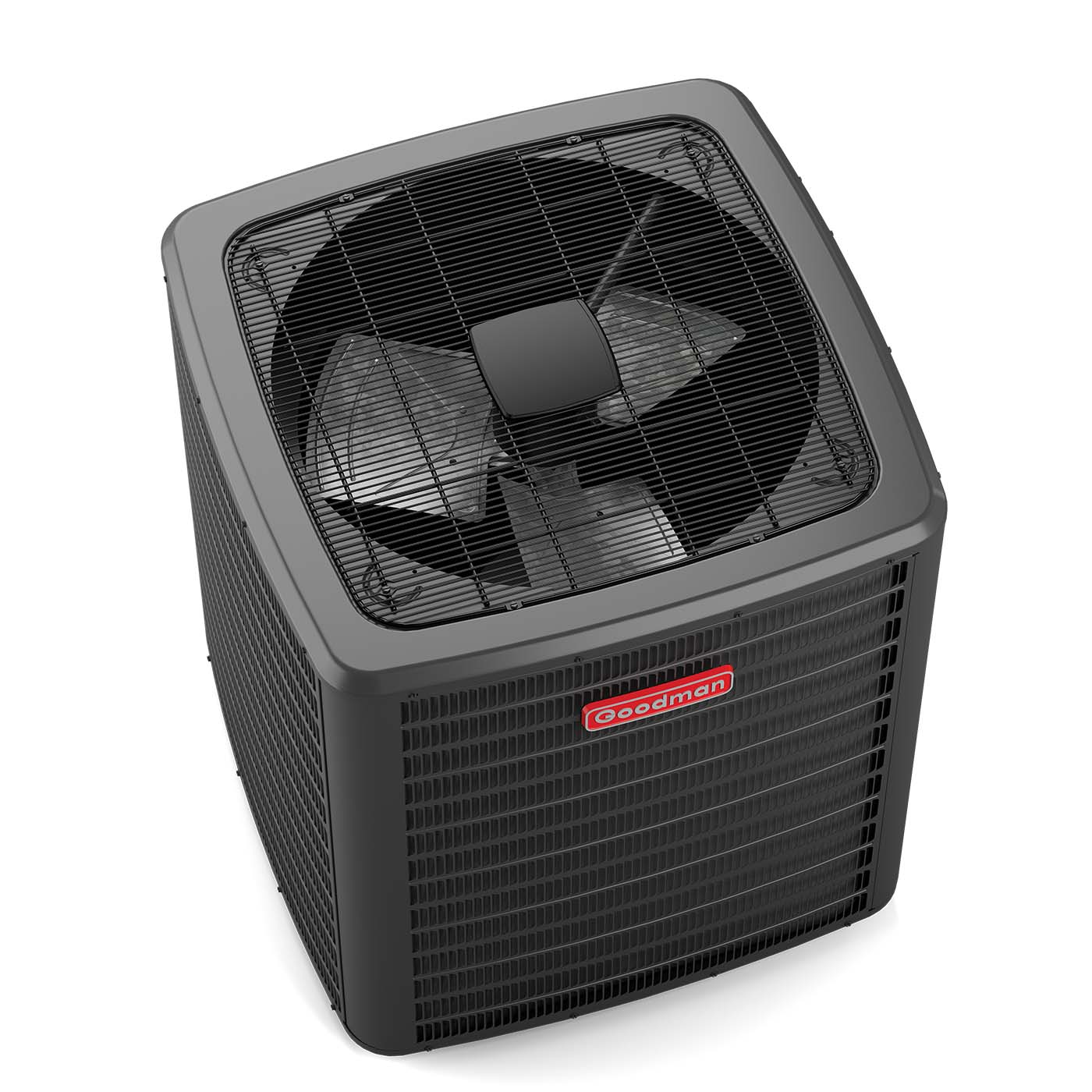

Goodman 5.0 Ton split air conditioner 17.2 seer GSXC706010
Description
Description
Model: GSXC706010
Goodman Specifications Sheet Click HERE
Outdoor: GSXC706010
Specifications:
Two-Stage Copeland Ultra Tech scroll compressor
Quiet two-speed ECM outdoor fan motor
Integrated communicating ComfortBridge™ Technology
Commissioning and diagnostics via Bluetoothindoor board via CoolCloud™ App
Copeland® ComfortAlert™ built in diagnostics.
Copper tube/ enhanced aluminum fin coil 5mm on 2.0-3.0T
Color-coded terminal strip for non-communicating set-up
Only two low-voltage wires required incommunication mode
Factory-installed filter drier
Factory-installed transformer
Factory-installed high and low-pressure switches
High-density foam compressor sound blanket
Fully charged for 15’ of tubing length
Coil and ambient temperature sensors
Ground lug connection
AHRI Certified - ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand: Goodman
Cabinet Features: Removable grille-style top design compliantwith UL 60335-2-40
Venturi for increased velocity of airflow
Heavy-gauge galvanized steel cabinet
Baked-on powder-paint finish with 500-hoursalt-spray approval
Steel louver coil guard with rust-resistant screws
Top and side maintenance access
Single-panel access to controls with space forfield-installed accessories
Service valves with sweat connections and easy-accessgauge ports
When properly anchored, meets the 2020 Florida BuildingCode unit integrity requirements for hurricane-type winds(Anchor bracket kits available.)
Class: Split Air Conditioner
Family Description: High-Efficiency Split-System, 2-Stage Air Conditioner 17.2 SEER2
Max. Voltage: 253
Min. Circuit: 34.8
Min. Voltage: 197
Model Efficiency: 17.2 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Air Conditioner
Family: GSXC7
Prop65 Label Required: TRUE
Tonnage: 5 tons
Unit Type: Outdoor
