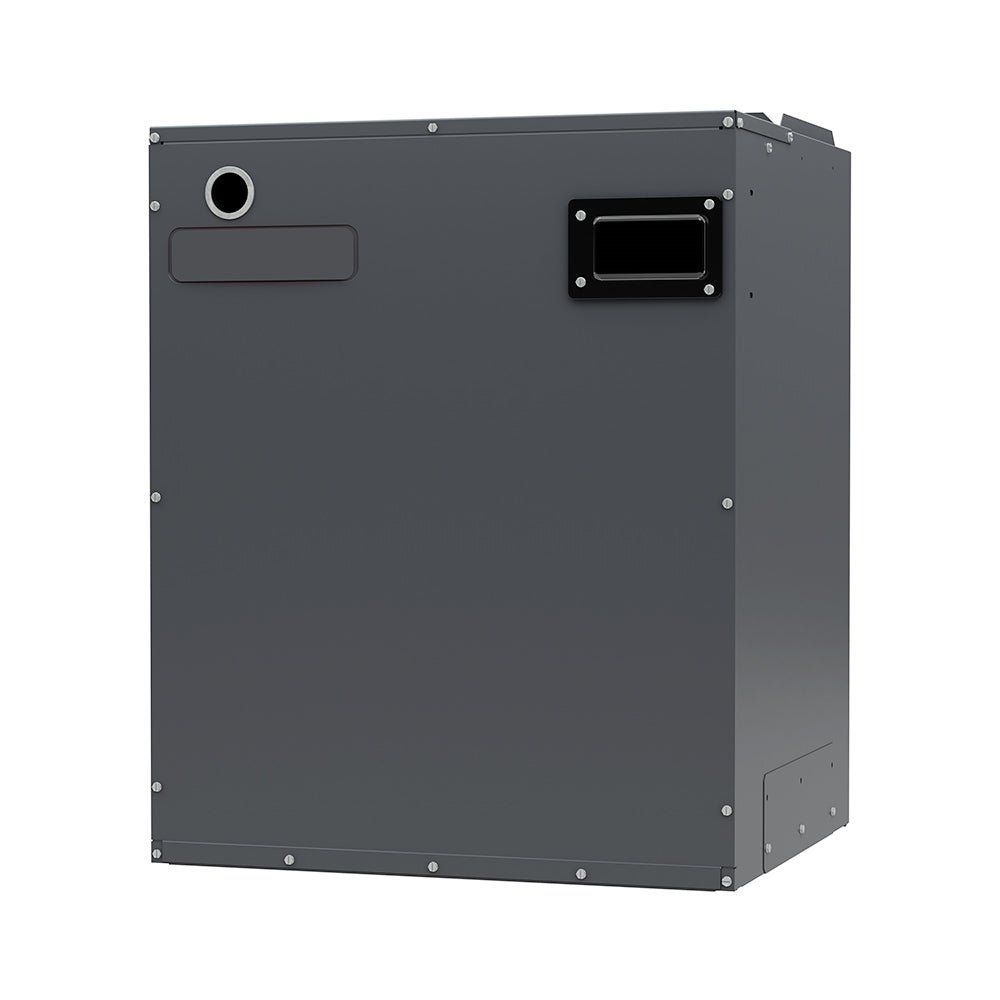

Blower: MBVC1201AA-1
Goodman Specifications Sheet Click HERE
Specification:
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- Advanced configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- 3 kW – 21 kW electric heat kits
- Blower section usable as electric heater
- AHRI certified
- ETL listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes:
Airflow Rate High Cooling: 1200
Brand: Corporate
Cabinet Features:
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Class: Air Handler
Family Description: Multi-Position, Variable-Speed ECM-Based, Modular Blower ComfortBridge™ Compatible
Max. Voltage: 253
Min. Voltage: 197
Motor Speed Type: Variable Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Category: Air Handler
Family: MBVC_1
Prop65 Label Required: TRUE
Unit Type: Indoor
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)
COIL: CAPTA3026B4
Specifications:
Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology
Optimized for use with R-401A refrigerant
Factory-installed thermal expansion valves for cooling applications
Rust resistant, thermoplastic drain pans featuring a low water-retention design
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Single-piece access panel with tight seal helps to keep conditioned air from escaping
Seal tight customized suction and liquid grommets for easy installation and removal
21" depth for easier attic access
Vertical application
AHRI certified
ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
