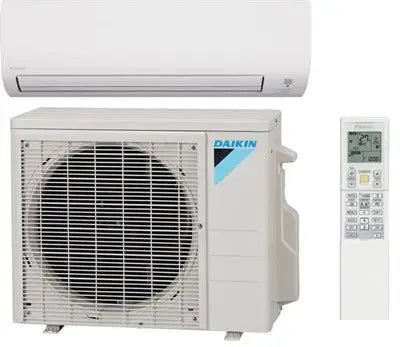

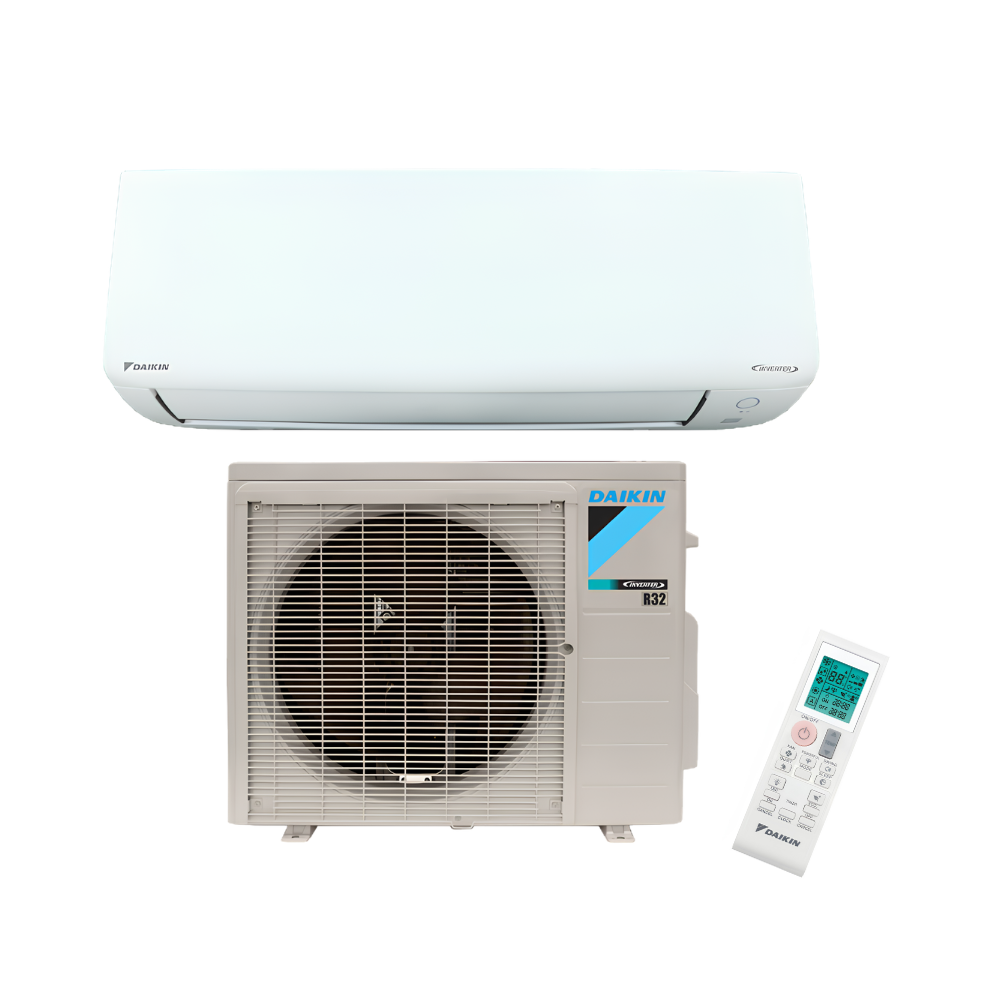

DAIKIN 1 TON Ton OTERRA MINI SPLIT HEAT PUMP 18 SEER SINGLE ZONE
Model: RX12BXVJU/FTX12BXVJU

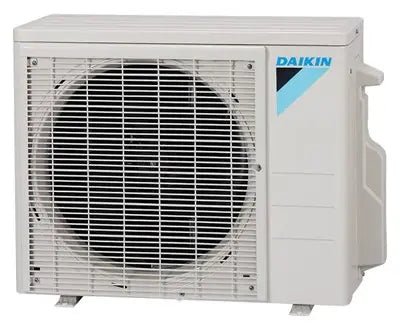

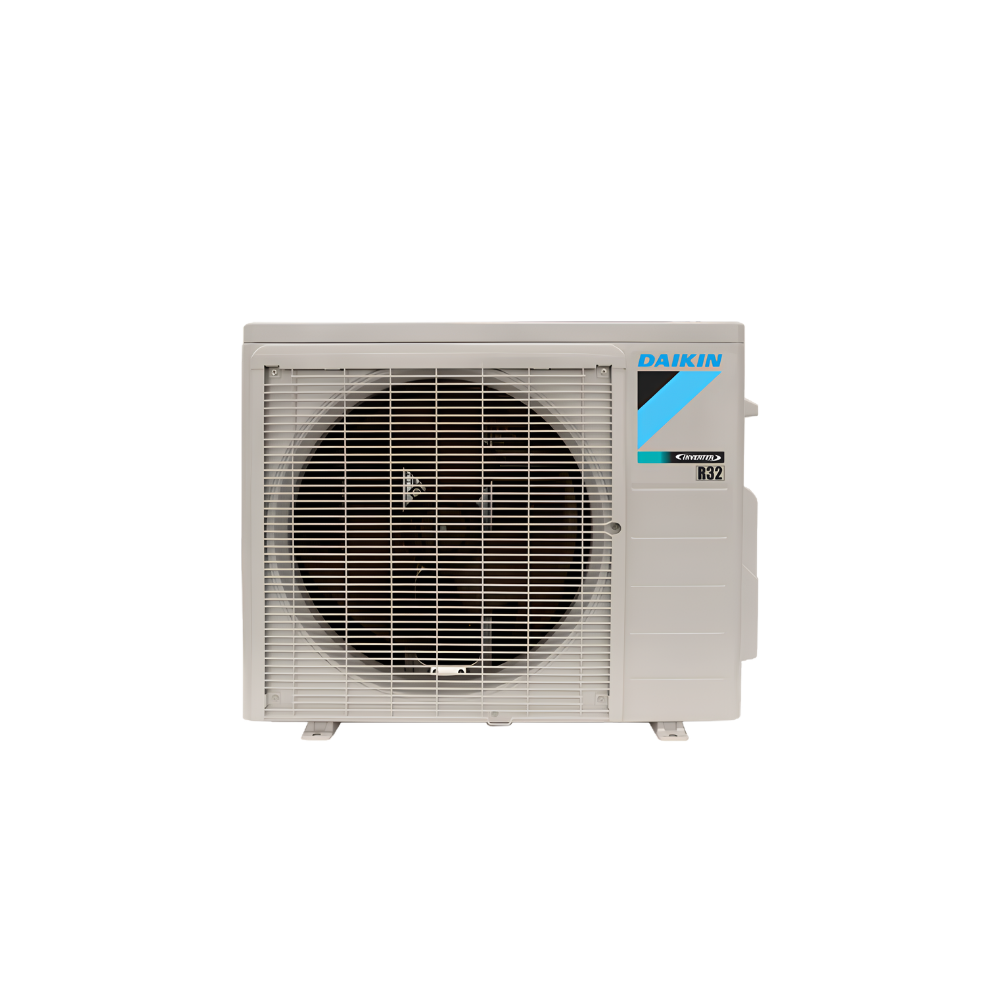

PRODUCT: RX12BXVJU
Specifications
Operating Range - Cooling (50° - 114.8°)
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Airflow Rate High Cooling: 1051
Airflow Rate High Heating: 966
Brand: Daikin
Class: Mini-Split Heat Pump
Compressor Stages: Inverter
Compressor Type: Swing
Cooling Capacity Rated: 10900
Unit Depth: 11-3/16
Unit Height: 21-11/16
Unit Width: 26-1/2
Family Description: 0.75-2.0 Ton Single Split Heat pump up to 12.5 EER2/20 SEER2/4.06 COP/10 HSPF2
Heating Capacity Rated: 13500
Min. Circuit: 12.4
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Energy Savings
Worry Free Operations
Long life of equipment
Category: Mini-Split Heat Pump
Family: RX_BXVJU
Product ID Bar Code: RX12BXVJU
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1 tons
Unit Type: Outdoor
Unit Weight: 62
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)

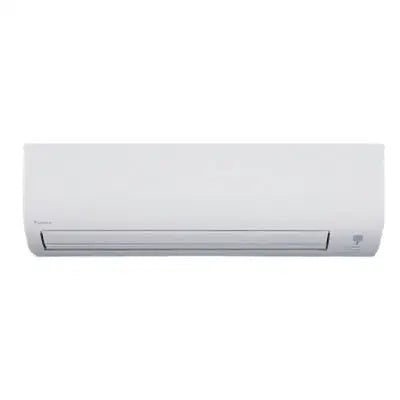

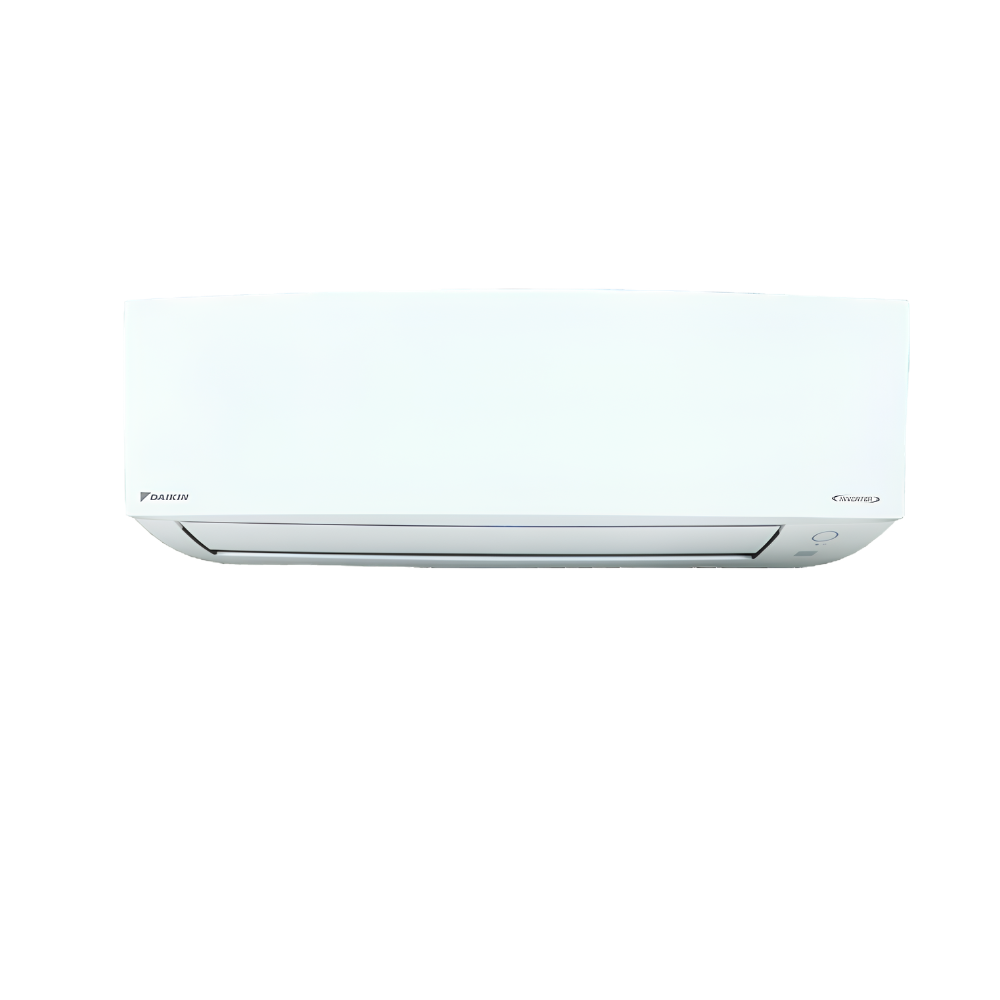

Product: FTX12BXVJU
Specifications
IR controller included
3-D airflow - Auto-swing (up, down and right, left)
Intelligent eye occupancy sensor
Titanium apatite photo catalytic air purifying filter technology
Hot start technology
Auto-restart (after power failure)
Weekly Timer (Up to 4 events per day)
Comfort Airflow
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Airflow Rate High Cooling:
436
Airflow Rate High Heating:
412
Airflow Rate Low Cooling:
247
Airflow Rate High Heating:
247
Brand:
Daikin
Class:
Mini-Split Fan Coils
Cooling Capacity Rated:
10900
Unit Depth:
9-27/32
Unit Height:
11-1/3
Unit Width:
30-29/32
Family Description:
0.75 - 2.0 Ton Wall Mounted Unit Heat Pump
Heating Capacity Rated:
13500
Min. Circuit:
12.4
Power Frequency:
60
Power Phase:
1
Power Voltage:
208/230
Product Benefits:
Inverter Technology Reduces Energy Cost
Uniform Air Circualtion
Optimal Comfort
Quiet Operations
Clean and Purified Indoor Air
Easy to Clean
Worry Free operation
Category:
Mini-Split Fan Coils
Family:
FTX_BXVJU
Product ID Bar Code:
FTX12BXVJU
Prop65 Label Required:
TRUE
Refrigerant:
R-410A
Tonnage:
1 tons
Unit Type:
Indoor
Unit Weight:
21.4
