Model: RX18BXVJU/FTX18BXVJU
PRODUCT: RX18BXVJU
Specifications
Operating Range - Cooling (50° - 114.8°)
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Airflow Rate High Cooling:
1987
Airflow Rate High Heating:
1952
Brand:
Daikin
Class:
Mini-Split Heat Pump
Compressor Stages:
Inverter
Compressor Type:
Swing
Cooling Capacity Rated:
18000
Unit Depth:
13-13/16
Unit Height:
27-13/32
Unit Width:
36-5/8
Family Description:
0.75-2.0 Ton Single Split Heat pump up to 12.5 EER2/20 SEER2/4.06 COP/10 HSPF2
Heating Capacity Rated:
21600
Min. Circuit:
16.55
Power Frequency:
60
Power Phase:
1
Power Voltage:
208/230
Product Benefits:
Energy Savings
Worry Free Operations
Long life of equipment
Category:
Mini-Split Heat Pump
Family:
RX_BXVJU
Product ID Bar Code:
RX18BXVJU
Prop65 Label Required:
TRUE
Refrigerant:
R-410A
Tonnage:
1.5 tons
Unit Type:
Outdoor
Unit Weight:
97
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)

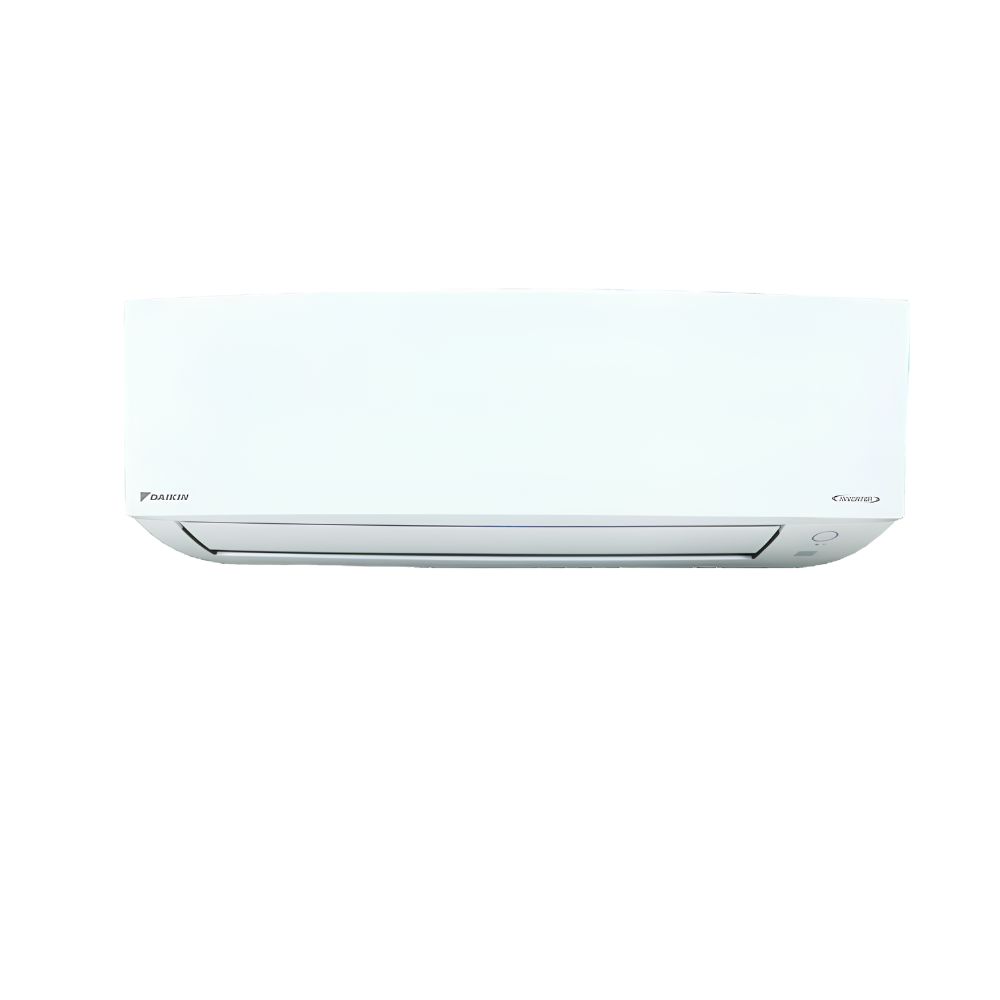

Product: FTX18BXVJU
Specifications
IR controller included
3-D airflow - Auto-swing (up, down and right, left)
Intelligent eye occupancy sensor
Titanium apatite photo catalytic air purifying filter technology
Hot start technology
Auto-restart (after power failure)
Weekly Timer (Up to 4 events per day)
Comfort Airflow
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Airflow Rate High Cooling:
716
Airflow Rate High Heating:
716
Airflow Rate Low Cooling:
467
Airflow Rate High Heating:
467
Brand:
Daikin
Class:
Mini-Split Fan Coils
Cooling Capacity Rated:
18000
Unit Depth:
11-1/3
Unit Height:
11-11/16
Unit Width:
39-1/2
Family Description:
0.75 - 2.0 Ton Wall Mounted Unit Heat Pump
Heating Capacity Rated:
21600
Min. Circuit:
16.55
Power Frequency:
60
Power Phase:
1
Power Voltage:
208/230
Product Benefits:
Inverter Technology Reduces Energy Cost
Uniform Air Circualtion
Optimal Comfort
Quiet Operations
Clean and Purified Indoor Air
Easy to Clean
Worry Free operation
Category:
Mini-Split Fan Coils
Family:
FTX_BXVJU
Product ID Bar Code:
FTX18BXVJU
Prop65 Label Required:
TRUE
Refrigerant:
R-410A
Tonnage:
1.5 tons
Unit Type:
Indoor
Unit Weight:
31
