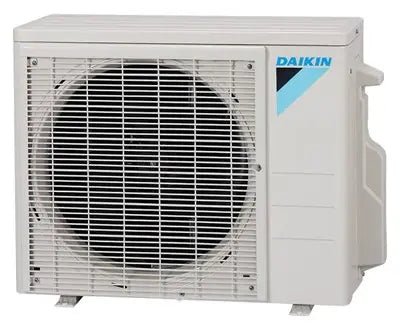

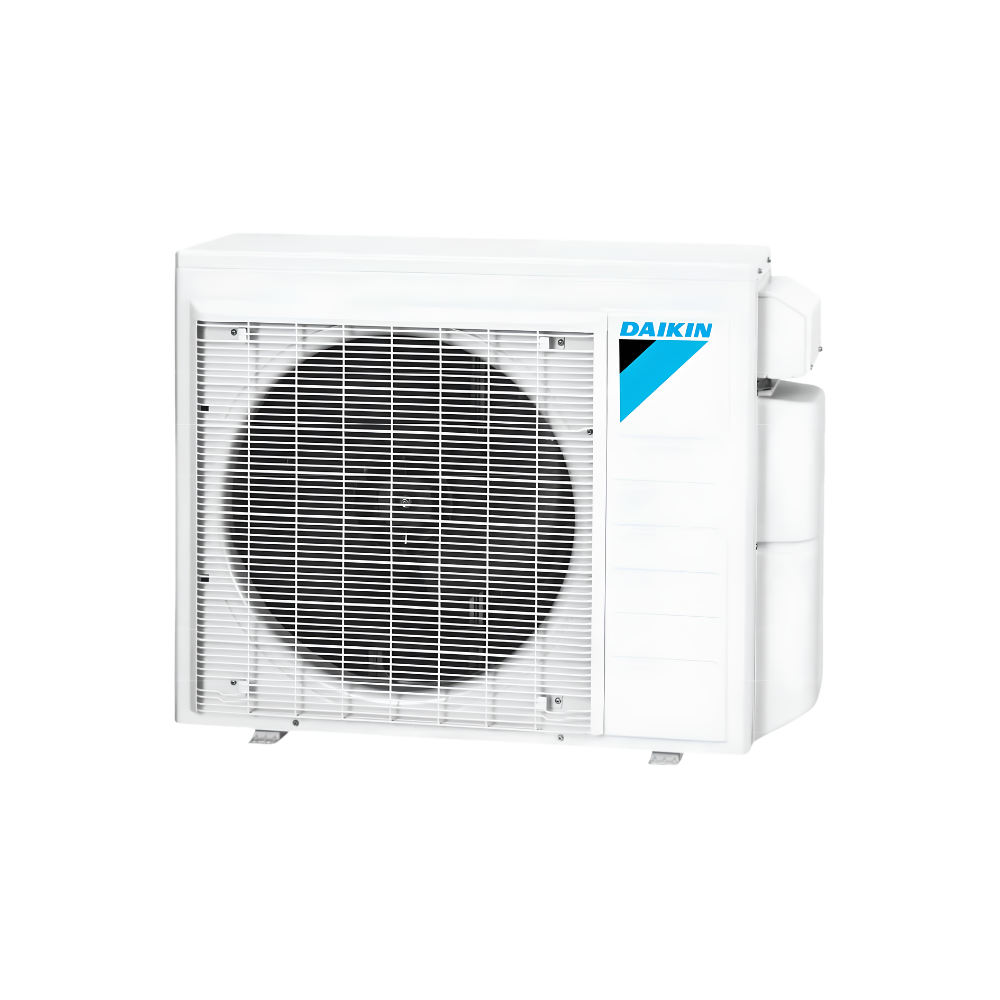

Model: 2MX18AXVJU
Specifications
Inverter Technology delivers precise temperature control and superior energy efficiency.
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Airflow Rate High Cooling: 1170
Airflow Rate High Heating: 1300
Brand: Daikin
Class: Multi-Split Heat Pump
Compressor Stages: Inverter
Compressor Type: Swing
Cooling Capacity Rated: 17000
Unit Depth: 11-3/16
Unit Height: 21-11/16
Unit Width: 26-1/2
Family Description: 1.5 Ton 2-Port Heat Pump Up to 17 SEER / 9 HSPF / 10 EER
Heating Capacity Rated: 17000
Min. Circuit: 10.9
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits:
10 Year limited parts warranty with online registration
5 Year limited parts warranty for commercial applications
Category: Multi-Split Heat Pump
Family: 2MX_AXVJU
Product ID Bar Code: 2MX18AXVJU
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1.5 tons
Unit Type: Outdoor
Unit Weight: 77
