MRCOOL VersaPro Model : MVP-60-HP-MUAH-230A00-O

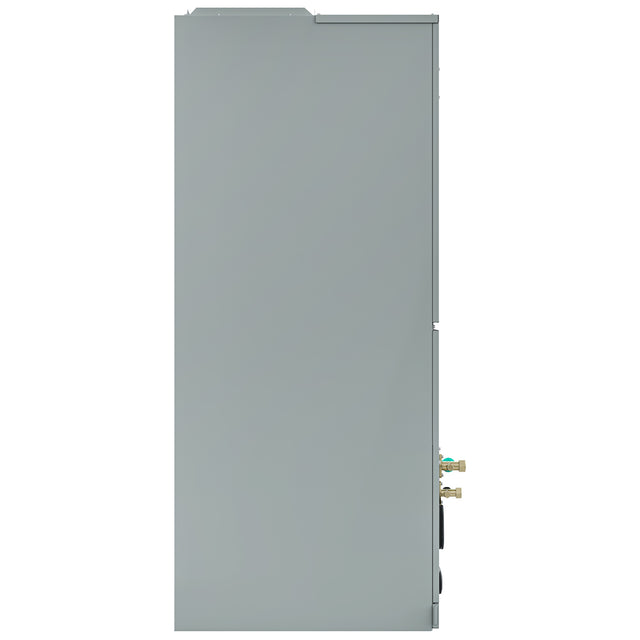

MRCOOL VersaPro 5 Ton Central Ducted Air Handler – Reliable, Energy-Efficient Comfort
The MRCOOL VersaPro 5 Ton Central Ducted Air Handler delivers year-round heating and cooling for spaces up to 2,500 sq. ft. With a SEER2 rating of 16, this unit ensures energy-efficient climate control while keeping operating costs low.
Built for durability, it features a painted galvanized steel construction and a self-diagnostics panel for quick issue detection and hassle-free maintenance. Its flexible installation options—including upflow, downflow, and horizontal configurations—allow it to adapt to various layouts.
Designed with eco-friendliness in mind, the VersaPro Air Handler uses R-454B refrigerant to reduce environmental impact. An optional heat kit is available for extra warmth in colder months.
For precise temperature control, the included MRCOOL Smart Thermostat and SmartHVAC app compatibility provide remote access and effortless climate management. It is fully compatible with the MRCOOL Central Ducted Hyper Heat Condenser for optimal performance.
Backed by a 10-year warranty, the VersaPro® 5 Ton Air Handler is a long-lasting, energy-efficient solution for enhancing home comfort in every season.
CFM
|
1807.00/1583.33/1359.67/1136.00
|
TONNAGE
|
5
|
COOLING CAPACITY (BTU)
|
54000
|
HEATING CAPACITY (BTU)
|
54000
|
VOLTAGE (V)
|
115/208-230
|
PHASE
|
1
|
CYCLE
|
60
|
MAX FUSE BREAKER (A)
|
15
|
MIN CIRCUIT AMPACITY (A)
|
14.5/11.0
|
COLOR
|
gray
|
DECIBEL RATING LOW (DBA)
|
34.5
|
DECIBEL RATING HIGH (DBA)
|
56
|
NUMBER OF SPEEDS
|
4
|
MAX LINESET LENGTH (FT)
|
246 ft
|
LIQUID LINE SIZE
|
3/8
|
SUCTION LINE SIZE
|
3/4
|
FILTER TYPE
|
Replaceable
|
FILTER SIZE
|
23x20x1
|
AUXILIARY HEATER INCLUDED
|
No
|
AUXILIARY HEATER AVAILABLE
|
Yes
|
AUXILIARY HEATER SIZES
|
10kW/15kW/20kW
|
ADJUSTABLE THERMOSTAT
|
Yes
|
WIFI COMPATIBILITY
|
Yes
|
APP COMPATIBILITY
|
Yes
|
ETL CERTIFIED
|
Yes
|
ENERGY STAR CERTIFIED
|
Yes
|
AHRI CERTIFIED
|
Yes
|
BASE PARTS WARRANTY
|
10 Years
|
BASE COMPRESSOR WARRANTY
|
10 Years
|
CONTAINS ELECTRONICS
|
Yes
|
CONTAINS CHEMICALS
|
Yes
|
CONTAINS COMPRESSED GAS
|
Yes
|
NET DEPTH (IN)
|
24.49
|
NET HEIGHT (IN)
|
52.99
|
NET WIDTH (IN)
|
21.02
|
NET WEIGHT (LBS)
|
162.92
|
GROSS DEPTH (IN)
|
26.77
|
GROSS HEIGHT (IN)
|
56.5
|
GROSS WIDTH (IN)
|
27.95
|
GROSS WEIGHT (LBS)
|
190.92
|
