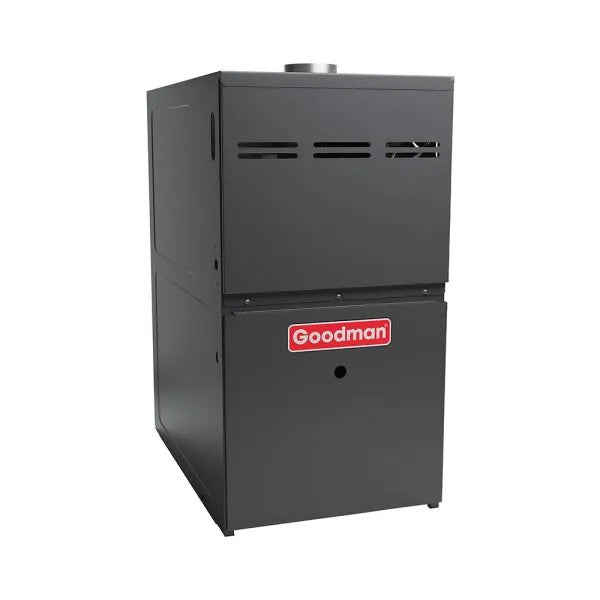

Model: GR9S801005CX
Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage, GR9S800403AN
Specifications:
- Heavy-duty luminized-steel tubular heat exchanger
2. "Silicon Nitride igniter"
3. Color-coded low-voltage terminals
4. Multi-speed ECM blower motor with continuous fan speed
5. Fault code LED Output
6. Single-Stage gas Valve
7. Single-speed inducer draft blower
Product Attributes:
AFUE: 80
Airflow Rate High Heating: 1308
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 21
Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 80% AFUE
High-Fire Input Capacity: 100000
High-Fire Output Capacity: 80,000
keywords: GR9S801005CX
Min. Circuit: 12.45
Model Efficiency: 0.8
Motor Speed Type: Nine Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
High reliabilitynd quality
Durablend long-igniter life
Provisions for electronicir cleanernd humidifier
Energy Efficientnd quiet circulation
Self-diagnostic control board with constant memory
Simple installationnd setup
Quietnd simple operation
Category: Gas Furnace
Family: GR9S80
Product ID Bar Code: GR9S801005CX
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 132
Warranty:
Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - LIFETIME PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 79 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Documents:
Product Specification Table
Brand | Goodman |
Model # | GR9S801005CX |
SEER2/EER2 | |
Refrigerant | R-32 |
Tonnage | |
Coil Type | |
Total Indoor Unit(s) BTU | 100000 |
Voltage Requirements | 110V To 120 V |
Series | |
Coverage Area (Sq. Ft) | |
Indoor Mount Type | Wall Mount |
Indoor Unit BTUs | 100K |
Zone/Rooms | |
AHRI No | GR9S801005CX |
Burner Stages | Single Stage |
Cabinet Width | 21" |
Airflow Direction | Upflow |
Furnace Efficiency / AFUE | 80% |
Furnace BTU | 100,000 BTU's |
Power Phase ( Single/Three) | 1 Ph |
Dimensions - (Shipping Unit Width) | #N/A |
Dimensions - (Shipping Unit Height) | #N/A |
Dimensions - (Shipping Unit Depth) | |
Weight - (Shipping Unit) | |
Refrigerant Pre-Charged Line Length | |
Power Frequency | 60 Hz |
Nom. CFM | |
Motor Speed Type | #N/A |
MOCP | |
Min. Circuit Amps | #N/A |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | #N/A |
LoNox | |
Valve Size Suction (O.D.) | |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | |
Expansion Device | |
Decibels (dBA) | |
Compressor Type | |
Compressor Stages | |
Cased vs Uncased | |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | |
Airflow Rate High Cooling | |
Function Category | Gas Furnace |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |
All-Aluminum evaporator coil;Optimized for use with R-32 refrigerant including circuits and manifolds;R-32 sensor designed for the life span of the coil;Factory-installed optimized metering device (piston);Standardized copper suction tube stub length;21" depth for easier attic access;Foil-faced insulation covers the internal casing to reduce cabinet condensation;21" depth for easier attic access;Vertical application;Galvanized, leather grain-embossed finish;Rust resistant, thermoplastic drain pans featuring a low water-retention design;DecaBDE-free thermoplastic drain pan with secondary drain connections;Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity;UV-resistant drain pan;AHRI certified;ETL listed
Product Specification Table
Brand | Goodman |
Model # | CAPFA4226D3 |
SEER2/EER2 | |
Refrigerant | R-32 |
Tonnage | |
Coil Type | Cased |
Total Indoor Unit(s) BTU | |
Voltage Requirements | 208V To 230V |
Series | |
Coverage Area (Sq. Ft) | |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | |
Burner Stages | |
Cabinet Width | |
Airflow Direction | |
Furnace Efficiency / AFUE | |
Furnace BTU | |
Power Phase ( Single/Three) | 1 Ph |
Dimensions - (Shipping Unit Width) | 1.00 in |
Dimensions - (Shipping Unit Height) | 1.00 in |
Dimensions - (Shipping Unit Depth) | 1.00 in |
Weight - (Shipping Unit) | 1.000 lb |
Refrigerant Pre-Charged Line Length | |
Power Frequency | 60 Hz |
Nom. CFM | |
Motor Speed Type | |
MOCP | |
Min. Circuit Amps | |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | |
LoNox | |
Valve Size Suction (O.D.) | 0 |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | Electric |
Expansion Device | Orifice |
Decibels (dBA) | |
Compressor Type | |
Compressor Stages | |
Cased vs Uncased | Cased |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | |
Airflow Rate High Cooling | |
Function Category | |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |
Energy-Efficienct Compressor;Fully charged for 15' of tubing length;Copper tube/ enhanced aluminum fin coil-5mm diameter;Factory-installed filter drier;Sweat connection service valves with easy access to gauge ports;Enclosed contactor with lug connection;High-pressure switch;Capacitors with extended life;AHRI Certified;ETL Listed Removable grille-style top design compliant with UL 60335-2-40;Venturi for increased velocity of airflow;Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval;Wire fan discharge grille;Steel louver coil guard;Top and side maintenance access;Single-panel access to controls with space provided for field-installed accessories;When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Product Specification Table
Brand | Goodman |
Model # | GLXS3BN3610 |
SEER2/EER2 | 13.4 |
Refrigerant | R-32 |
Tonnage | 3.0 Ton |
Coil Type | |
Total Indoor Unit(s) BTU | |
Voltage Requirements | 208V To 230V |
Series | |
Coverage Area (Sq. Ft) | |
Indoor Mount Type | |
Indoor Unit BTUs | |
Zone/Rooms | |
AHRI No | |
Burner Stages | |
Cabinet Width | |
Airflow Direction | |
Furnace Efficiency / AFUE | |
Furnace BTU | |
Power Phase ( Single/Three) | 1 Ph |
Dimensions - (Shipping Unit Width) | 27.50 in |
Dimensions - (Shipping Unit Height) | 34.50 in |
Dimensions - (Shipping Unit Depth) | 27.50 in |
Weight - (Shipping Unit) | 151.000 lb |
Refrigerant Pre-Charged Line Length | 15 ft |
Power Frequency | 60 Hz |
Nom. CFM | |
Motor Speed Type | |
MOCP | |
Min. Circuit Amps | 17.5 A |
Min Voltage | |
Max Voltage | |
Max Overcurrent Protection | 30 A |
LoNox | |
Valve Size Suction (O.D.) | 7/8 in |
Valve Size Liquid (O.D.) | |
Liquid Line Size | |
Energy Source | Electric |
Expansion Device | |
Decibels (dBA) | 69 dBA |
Compressor Type | Scroll |
Compressor Stages | Single Stage |
Cased vs Uncased | |
Heating Capacity - (Nominal) | |
Cooling Capacity - (Nominal) | 34200 Btu/H |
Airflow Rate High Cooling | |
Function Category | Split Air Conditioner |
Package System Type | |
Air Handler Mount Type System | |
Split System Type | |
