Goodman 2.5 Ton GLXS5B Split Air Conditioner 15.2 SEER2 Single Stage, GLXS5BA3010

Specifications:

High-efficiency scroll compressor; Factory-installed filter drier; Fully charged for 15’ of tubing length; Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T; Service valves with sweat connections and easy-to-access gauge ports; Enclosed contactor with lug connection; Ground lug connection; High-pressure switch; AHRI Certified; ETL Listed

R32 Air Conditioner Condenser

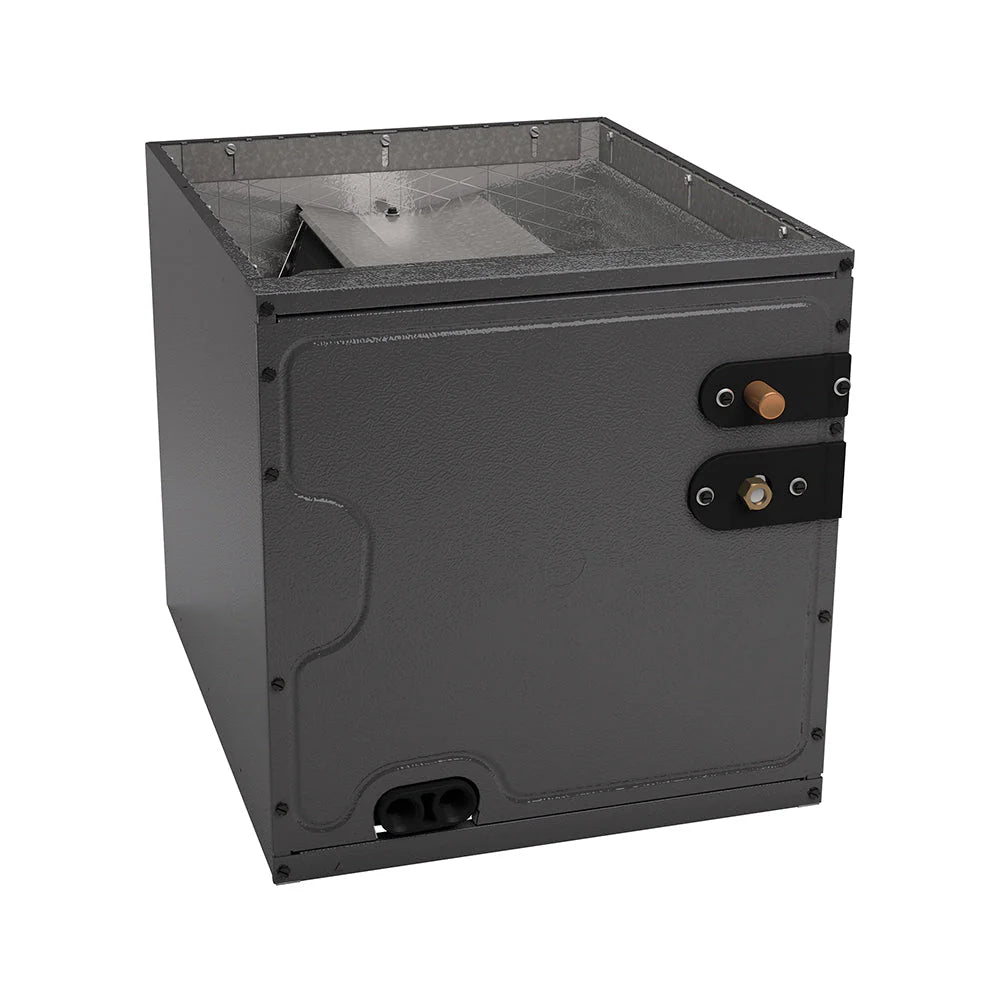

Goodman 2.5 Ton Cased Evaporator R-32 Coil with TXV Upflow/Downflow, CAPTA3022B3

Specifications:

All-Aluminum evaporator coil ;Optimized for use with R-32 refrigerant including circuits and manifolds;R-32 sensor designed for the life span of the coil; Factory-installed thermal expansion valves for cooling and heat pump applications; Standardized copper suction tube stub length; Check flowrator for cooling and heat pump applications; Vertical application;21" depth for easier attic access; Single front access panel; Foil-faced insulation covers the internal casing to reduce cabinet condensation; Galvanized, leather grain-embossed finish; Rust resistant, thermoplastic drain pan featuring a low water-retention design; DecaBDE-free thermoplastic drain pan with secondary drain connections; Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity; UV-resistant drain pan; AHRI certified; ETL Listed

R32 Coil

Model: GR9S800403AX

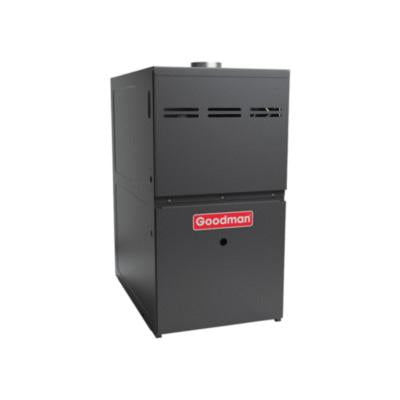

Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage, GR9S800403AN

Specifications:

1. Heavy-duty luminized-steel tubular heat exchanger
   2. "Silicon Nitride igniter"
   3. Color-coded low-voltage terminals
   4. Multi-speed ECM blower motor with continuous fan speed
   5. Fault code LED Output
   6. Single-Stage gas Valve
   7. Single-speed inducer draft blower

Product Attributes:
AFUE: 80
Airflow Rate High Heating: 697
Brand: Goodman
Cabinet Features:
Installation:– GR9S80 -upflow, horizontal left or right– GD9S80- downflow,horizontal left or right
Convenient left or right connection for gasnd electrical service
Heavy-gauge steel cabinet with durable baked-enamel finish
Foil faced insulated heat exchanger
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 14
Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 80% AFUE
High-Fire Input Capacity: 40000
High-Fire Output Capacity: 32,000
keywords: GR9S800403AN
Min. Circuit: 8.7
Model Efficiency: 0.8
Motor Speed Type: Nine Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits: High reliabilitynd quality
Durablend long-igniter life
Provisions for electronicir cleanernd humidifier
Energy Efficientnd quiet circulation
Self-diagnostic control board with constant memory
Simple installationnd setup
Quietnd simple operation
Category: Gas Furnace
Family: GR9S80
Product ID Bar Code: GR9S800403AN
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 86

Warranty:
Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - LIFETIME PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 79 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Documents:

Warranty Certificate

Specification Sheet

Installation Manual

1. What is the SEER rating of this unit?

   SEER (Seasonal Energy Efficiency Ratio) is a measure of the efficiency of your air conditioning system. The higher the SEER rating, the more energy-efficient the unit. This 2.5 Ton Goodman 14.5 SEER2 R32 GLXS5BA3010 GR9S800403AX CAPTA3022B3 has a SEER rating of 14.5.


2. What size air conditioner do I need for my home?

   Choosing the right size unit depends on the square footage of your home. For example:

   • Up to 1,200 sq. ft. – 1.5 to 2 tons
   • 1,200 to 1,600 sq. ft. – 2 to 3 tons
   • 1,600 to 2,100 sq. ft. – 3 to 4 tons
   Our experts can help you determine the best size based on your specific needs.


3. Is this unit compatible with my existing system?

   The 2.5 Ton Goodman 14.5 SEER2 R32 GLXS5BA3010 GR9S800403AX CAPTA3022B3 is compatible with a variety of HVAC systems. For specific compatibility with your current setup, please consult with our support team or refer to the product manual.


4. How long is the warranty for this unit?

   This unit comes with a manufacturer warranty of Manufactured warranty. You can also purchase extended warranties for added peace of mind.


5. How energy efficient is this unit?

   The 2.5 Ton Goodman 14.5 SEER2 R32 GLXS5BA3010 GR9S800403AX CAPTA3022B3 is designed to be highly energy efficient, which can help reduce your electricity bills. With a SEER rating of 14.5, it meets or exceeds federal efficiency standards.


6. What maintenance does this unit require?

   Regular maintenance includes cleaning or replacing air filters, inspecting ducts for leaks, and scheduling annual professional tune-ups. Following the manufacturer’s maintenance guidelines will ensure optimal performance.


7. Can I install this unit myself, or do I need a professional?

   We recommend professional installation for the 2.5 Ton Goodman 14.5 SEER2 R32 GLXS5BA3010 GR9S800403AX CAPTA3022B3 to ensure that it functions correctly and maintains its warranty. Improper installation can lead to performance issues and may void the warranty.


8. How long does shipping take?

   Standard shipping takes between 3-4 Days, depending on your location. Expedited shipping options are also available.


9. Are there financing options available?

   Yes, we offer financing options through Shopify. Visit our financing page or contact us for more information on available plans.


10. What are the noise levels of this unit?

    The 2.5 Ton Goodman 14.5 SEER2 R32 GLXS5BA3010 GR9S800403AX CAPTA3022B3 operates at approximately decibels, making it relatively quiet during operation. Noise levels may vary depending on the unit’s location and installation.


11. Does this unit qualify for any rebates or incentives?

    Depending on your location, you may be eligible for local or federal rebates for purchasing energy-efficient HVAC systems. Check with your local energy provider or government for available programs.


12. What refrigerant does this unit use?

    The GLXS5BA3010 GR9S800403AX CAPTA3022B3 uses R-32, which is environmentally friendly and complies with modern environmental standards.
