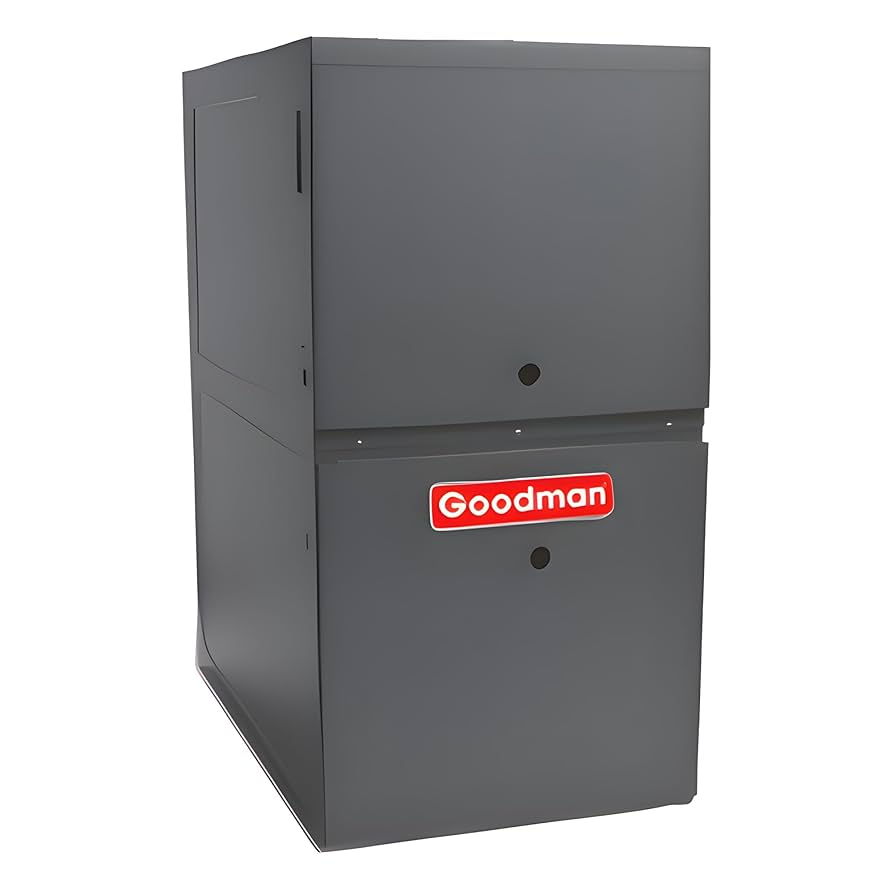

Model: GR9S800804BN

Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage, GR9S800403AN

Specifications:

1. Heavy-duty luminized-steel tubular heat exchanger
   2. "Silicon Nitride igniter"
   3. Color-coded low-voltage terminals
   4. Multi-speed ECM blower motor with continuous fan speed
   5. Fault code LED Output
   6. Single-Stage gas Valve
   7. Single-speed inducer draft blower

Product Attributes:
AFUE: 80
Airflow Rate High Heating: 1089
Brand: Goodman
Class: Gas Furnace
Unit Depth: 28
Unit Height: 33-3/8
Unit Width: 17-1/2
Family Description: Single-Stage Multi-Speed ECM Gas Furnace Up to 80% AFUE
High-Fire Input Capacity: 80000
High-Fire Output Capacity: 64,000
keywords: GR9S800804BN
Min. Circuit: 12.45
Model Efficiency: 0.8
Motor Speed Type: Nine Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 115
Product Benefits:
High reliabilitynd quality
Durablend long-igniter life
Provisions for electronicir cleanernd humidifier
Energy Efficientnd quiet circulation
Self-diagnostic control board with constant memory
Simple installationnd setup
Quietnd simple operation
Category: Gas Furnace
Family: GR9S80
Product ID Bar Code: GR9S800804BN
Prop65 Label Required: TRUE
Unit Type: Indoor
Unit Weight: 120

Warranty:
Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - LIFETIME PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 79 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Documents:

Warranty Certificate

Specification Sheet

Installation Manual

All-Aluminum evaporator coil;Optimized for use with R-32 refrigerant including circuits and manifolds;R-32 sensor designed for the life span of the coil;Factory-installed optimized metering device (piston);Standardized copper suction tube stub length;21" depth for easier attic access;Single front access panel;Foil-faced insulation covers the internal casing to reduce cabinet condensation;Vertical application;Galvanized, leather grain-embossed finish;Rust resistant, thermoplastic drain pans featuring a low water-retention design;DecaBDE-free thermoplastic drain pan with secondary drain connections;Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity;UV-resistant drain pan;AHRI certified;ETL listed

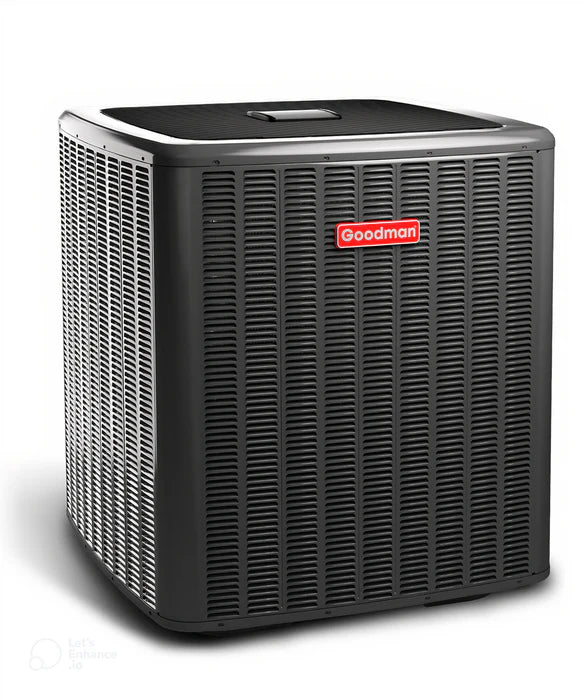

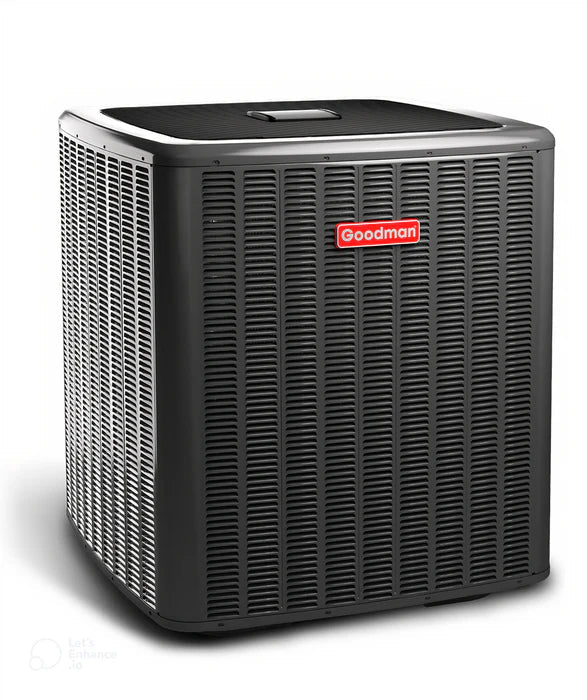

Energy-Efficienct Compressor;Fully charged for 15' of tubing length;Copper tube/ enhanced aluminum fin coil-5mm diameter;Factory-installed filter drier;Sweat connection service valves with easy access to gauge ports;Enclosed contactor with lug connection;High-pressure switch;Capacitors with extended life;AHRI Certified;ETL Listed Removable grille-style top design compliant with UL 60335-2-40;Venturi for increased velocity of airflow;Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval;Wire fan discharge grille;Steel louver coil guard;Top and side maintenance access;Single-panel access to controls with space provided for field-installed accessories;When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

1. What is the SEER rating of this unit?

   SEER (Seasonal Energy Efficiency Ratio) is a measure of the efficiency of your air conditioning system. The higher the SEER rating, the more energy-efficient the unit. This 2.5 Ton Goodman 13.4 SEER2 R32 GLXS3BN3010 GR9S800804BN CAPFA3022C3 has a SEER rating of 13.4.


2. What size air conditioner do I need for my home?

   Choosing the right size unit depends on the square footage of your home. For example:

   • Up to 1,200 sq. ft. – 1.5 to 2 tons
   • 1,200 to 1,600 sq. ft. – 2 to 3 tons
   • 1,600 to 2,100 sq. ft. – 3 to 4 tons
   Our experts can help you determine the best size based on your specific needs.


3. Is this unit compatible with my existing system?

   The 2.5 Ton Goodman 13.4 SEER2 R32 GLXS3BN3010 GR9S800804BN CAPFA3022C3 is compatible with a variety of HVAC systems. For specific compatibility with your current setup, please consult with our support team or refer to the product manual.


4. How long is the warranty for this unit?

   This unit comes with a manufacturer warranty of Manufactured warranty. You can also purchase extended warranties for added peace of mind.


5. How energy efficient is this unit?

   The 2.5 Ton Goodman 13.4 SEER2 R32 GLXS3BN3010 GR9S800804BN CAPFA3022C3 is designed to be highly energy efficient, which can help reduce your electricity bills. With a SEER rating of 13.4, it meets or exceeds federal efficiency standards.


6. What maintenance does this unit require?

   Regular maintenance includes cleaning or replacing air filters, inspecting ducts for leaks, and scheduling annual professional tune-ups. Following the manufacturer’s maintenance guidelines will ensure optimal performance.


7. Can I install this unit myself, or do I need a professional?

   We recommend professional installation for the 2.5 Ton Goodman 13.4 SEER2 R32 GLXS3BN3010 GR9S800804BN CAPFA3022C3 to ensure that it functions correctly and maintains its warranty. Improper installation can lead to performance issues and may void the warranty.


8. How long does shipping take?

   Standard shipping takes between 3-4 Days, depending on your location. Expedited shipping options are also available.


9. Are there financing options available?

   Yes, we offer financing options through Shopify. Visit our financing page or contact us for more information on available plans.


10. What are the noise levels of this unit?

    The 2.5 Ton Goodman 13.4 SEER2 R32 GLXS3BN3010 GR9S800804BN CAPFA3022C3 operates at approximately decibels, making it relatively quiet during operation. Noise levels may vary depending on the unit’s location and installation.


11. Does this unit qualify for any rebates or incentives?

    Depending on your location, you may be eligible for local or federal rebates for purchasing energy-efficient HVAC systems. Check with your local energy provider or government for available programs.


12. What refrigerant does this unit use?

    The GLXS3BN3010 GR9S800804BN CAPFA3022C3 uses R-32, which is environmentally friendly and complies with modern environmental standards.
