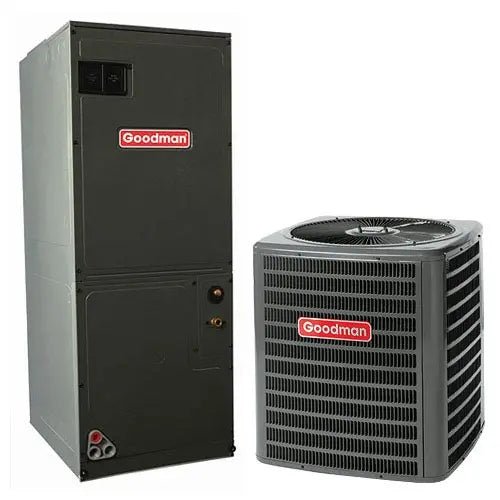

Goodman 1.5 Ton 15.2 SEER2 Heat Pump ECM AH GSZH501810 AMST24BU1400
Description
Description
Model: AMST24BU1400
Goodman Specifications Sheet Click HERE
Model: GSZH501810
Goodman Specifications Sheet Click HERE

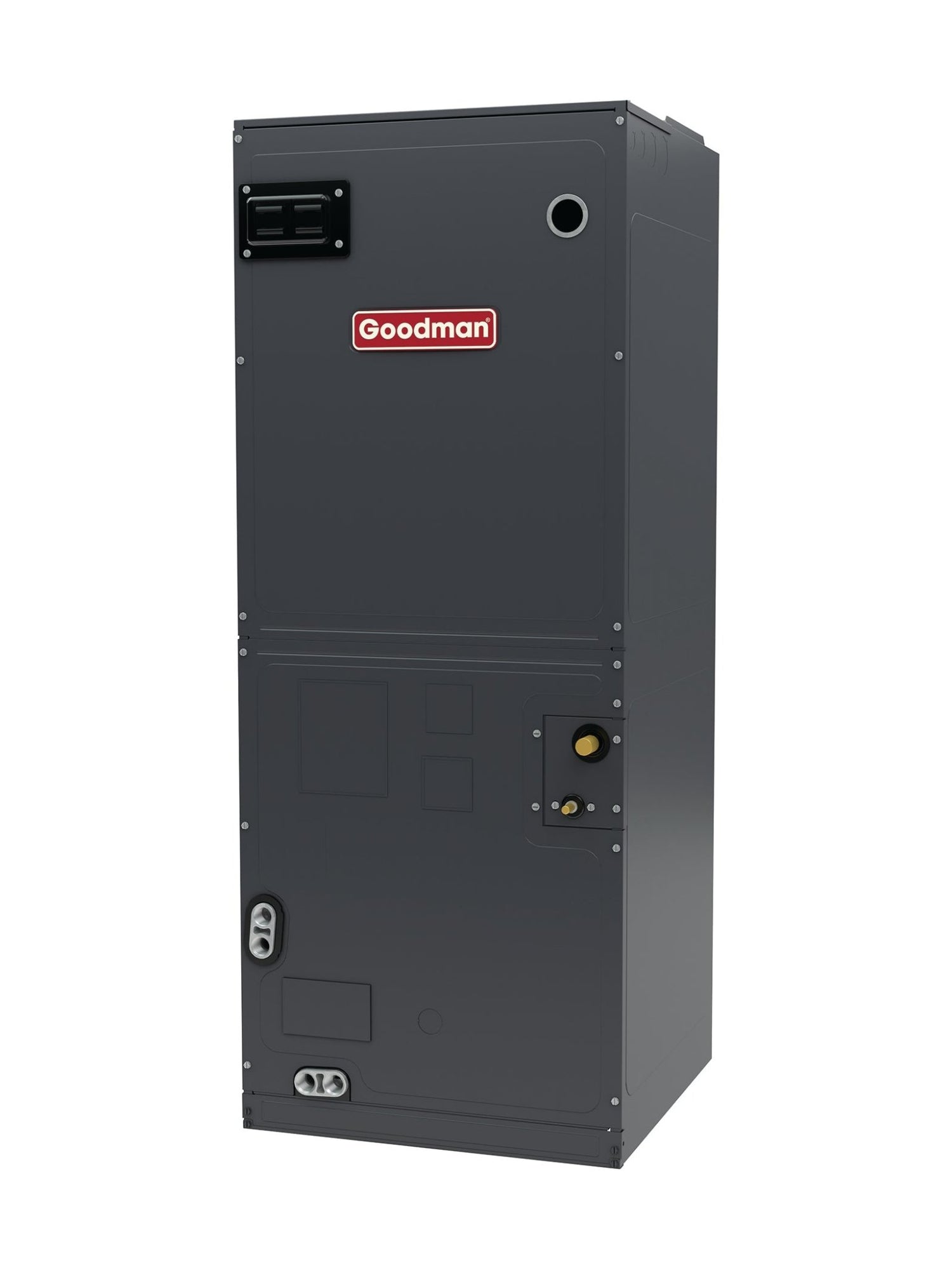

Air Handler: AMST24BU1400
Specifications:
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, 9-speed ECM blower motor
Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
All-aluminum evaporator coil with high-performance coated fin stock
Coil mounting track for quick repositioning
Optimized for use with R-410A refrigerant
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
3 kW – 25 kW electric heater kits
AHRI certified
ETL listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes:
Brand: Corporate
Cabinet Features: Rigid SmartFrame cabinet
Horizontal or vertical configuration capabilities
21” depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Glue-less cabinet insulation retention
Tool-less filter access
Class: Air Handler
Unit Depth: 21
Unit Height: 45
Unit Width: 17
Family Description: Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
Max. Voltage: 240
Min. Circuit: 5.8
Min. Voltage: 208
Motor Speed Type: Single Speed
Power Frequency: 50/60
Power Phase: 1
Power Voltage: 208-240
Product Benefits: All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
Category: Air Handler
Family: AMST
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2 tons
Unit Type: Indoor
Unit Weight: 112
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
SS-GM9S80_GC9S80.pdf (daikincloud.io)
SM-RS6621008.pdf (daikincloud.io)

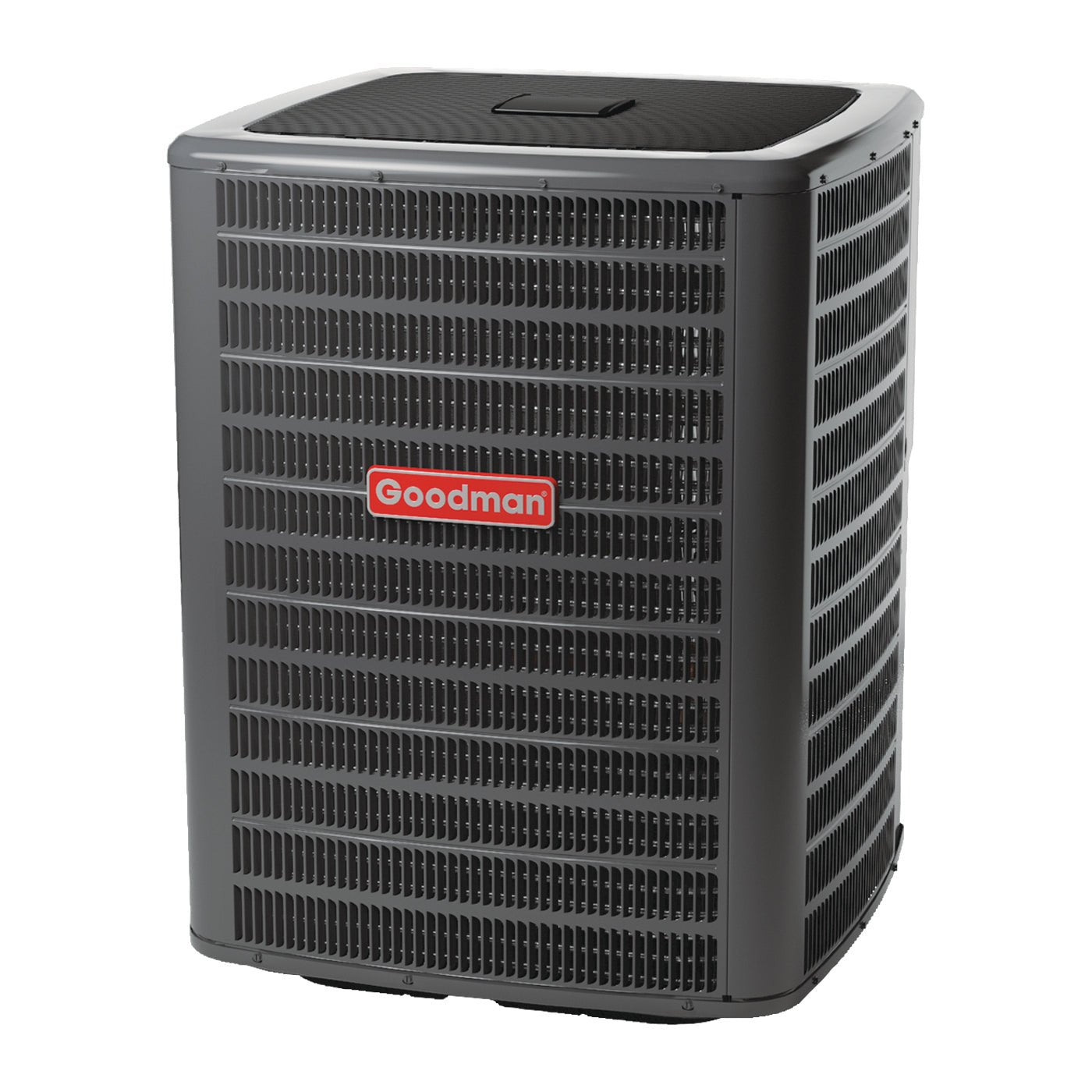

OUTDOOR: GSZH501810
Specifications
High-Efficiency scroll compressor
SmartShift® technology to ensure quiet reliable defrost
Copper tube/ enhanced aluminum fin coil- 5mm diameter on 1.5-3.5T
Factory-installed suction-line accumulator
Factory-installed compressor crankcase heater
Factory-installed high-capacity muffler
High- and low-pressure switches
Service valves with sweat connections and easy access to gauge ports
Fully charged for 15' of tubing length
Contactor with lug connection
Ground lug connection
AHRI Certified
ETL Listed
Warranty
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand: Goodman
Cabinet Features: Removable grille style top design compliant with UL 60335-2-40
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
Single panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
Class: Split Heat Pump
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 17600
Unit Depth: 29
Unit Height: 39.5
Unit Width: 29
Family Description: High-Efficiency Split System Heat Pump Up to 15.2 SEER2 & 7.8 HSPF2
Heating Capacity Rated: 17400
Max. Voltage: 253
Min. Circuit: 12.2
Min. Voltage: 197
Model Efficiency: 15.2 SEER2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Heat Pump
Family: GSZH5
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1.5 tons
Unit Type: Outdoor
Suction Valve Outside Diameter: 3/4
Unit Weight: 171
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
Reviews (0)
Reviews (0)
FAQ's for Goodman
FAQ's for Goodman
-
What is the SEER rating of this unit?
SEER (Seasonal Energy Efficiency Ratio) is a measure of the efficiency of your air conditioning system. The higher the SEER rating, the more energy-efficient the unit. This Goodman 1.5 Ton 15.2 SEER2 Heat Pump ECM AH GSZH501810 AMST24BU1400 has a SEER rating of 15.2.
-
What size air conditioner do I need for my home?
Choosing the right size unit depends on the square footage of your home. For example:
• Up to 1,200 sq. ft. – 1.5 to 2 tons
• 1,200 to 1,600 sq. ft. – 2 to 3 tons
• 1,600 to 2,100 sq. ft. – 3 to 4 tons
Our experts can help you determine the best size based on your specific needs.
-
Is this unit compatible with my existing system?
The Goodman 1.5 Ton 15.2 SEER2 Heat Pump ECM AH GSZH501810 AMST24BU1400 is compatible with a variety of HVAC systems. For specific compatibility with your current setup, please consult with our support team or refer to the product manual.
-
How long is the warranty for this unit?
This unit comes with a manufacturer warranty of Manufactured warranty. You can also purchase extended warranties for added peace of mind.
-
How energy efficient is this unit?
The Goodman 1.5 Ton 15.2 SEER2 Heat Pump ECM AH GSZH501810 AMST24BU1400 is designed to be highly energy efficient, which can help reduce your electricity bills. With a SEER rating of 15.2, it meets or exceeds federal efficiency standards.
-
What maintenance does this unit require?
Regular maintenance includes cleaning or replacing air filters, inspecting ducts for leaks, and scheduling annual professional tune-ups. Following the manufacturer’s maintenance guidelines will ensure optimal performance.
-
Can I install this unit myself, or do I need a professional?
We recommend professional installation for the Goodman 1.5 Ton 15.2 SEER2 Heat Pump ECM AH GSZH501810 AMST24BU1400 to ensure that it functions correctly and maintains its warranty. Improper installation can lead to performance issues and may void the warranty.
-
How long does shipping take?
Standard shipping takes between 3-4 Days, depending on your location. Expedited shipping options are also available.
-
Are there financing options available?
Yes, we offer financing options through Shopify. Visit our financing page or contact us for more information on available plans.
-
What are the noise levels of this unit?
The Goodman 1.5 Ton 15.2 SEER2 Heat Pump ECM AH GSZH501810 AMST24BU1400 operates at approximately decibels, making it relatively quiet during operation. Noise levels may vary depending on the unit’s location and installation.
-
Does this unit qualify for any rebates or incentives?
Depending on your location, you may be eligible for local or federal rebates for purchasing energy-efficient HVAC systems. Check with your local energy provider or government for available programs.
-
What refrigerant does this unit use?
The 208510079 uses , which is environmentally friendly and complies with modern environmental standards.
-
What happens if my unit arrives damaged?
If your unit arrives damaged, please contact us immediately at 678 535 7176. We will arrange for a replacement or repair, depending on the situation.
-
How can I track my order?
Once your order ships, we will send you tracking information via email. You can also log into your account to track the status of your shipment at any time.
