When installing an air conditioning (AC) or heat pump unit, one essential component that often doesn't get the attention it deserves is the condenser pad. This pad provides a stable and level foundation for your HVAC system's outdoor condenser unit. Choosing the right condenser pad size is crucial for ensuring your unit operates efficiently and remains protected from the elements. In this article, we'll discuss the various condenser pad sizes available, how to choose the correct size, and why selecting the right pad is essential for the longevity of your HVAC system.
1. What Is a Condenser Pad?
Purpose and Function
A condenser pad is a platform that supports the outdoor condenser unit of your HVAC system. It serves several vital functions:
- Stability: It keeps the condenser unit stable, preventing it from shifting or tipping over due to ground movement or weather conditions.
- Leveling: Ensures that the condenser is level, which is crucial for optimal operation and to prevent potential damage to the unit.
- Protection: Provides a barrier between the unit and the ground, protecting it from moisture, dirt, and pests, which can cause corrosion or other damage over time.
2. Common Condenser Pad Sizes
Condenser pads come in various sizes to accommodate different HVAC unit sizes and types. The most common sizes include:
24" x 24" Condenser Pads
- Ideal for: Smaller AC units or heat pumps.
- Common Use: Residential settings where the HVAC unit has a smaller footprint.
- Benefits: Provides a snug fit for compact units, ensuring stability without taking up unnecessary space.
30" x 30" Condenser Pads
- Ideal for: Medium-sized residential HVAC units.
- Common Use: Typical for standard residential AC units and some small commercial applications.
- Benefits: Offers a stable and level base for most mid-sized HVAC systems, balancing space efficiency with adequate support.
32" x 32" Condenser Pads
- Ideal for: Medium to large residential units or smaller commercial units.
- Common Use: Larger homes or commercial settings where a more substantial unit is needed.
- Benefits: Provides additional stability and support for units that are slightly larger, ensuring they remain level and secure.
36" x 36" Condenser Pads
- Ideal for: Large residential or commercial HVAC units.
- Common Use: Commercial buildings or large homes with heavy-duty cooling needs.
- Benefits: Offers ample space and stability for larger units, reducing the risk of movement and ensuring long-term durability.
40" x 40" and Larger Condenser Pads
- Ideal for: Extra-large commercial units or industrial HVAC systems.
- Common Use: Industrial settings where heavy, large-scale HVAC units are in use.
- Benefits: Provides maximum stability and support for the largest condenser units, often customized to fit specific commercial or industrial needs.
3. How to Choose the Right Condenser Pad Size
Measure the Base of Your Condenser Unit
The first step in choosing the right condenser pad size is to measure the dimensions of the base of your condenser unit. The pad should be slightly larger than the base to ensure full support and stability.
Consider the Weight and Type of Unit
Heavier units, especially those used in commercial or industrial settings, require larger and more robust pads to prevent sinking and ensure even weight distribution. The type of unit also matters—heat pumps, for example, may require specific pad types that can withstand additional vibration.
Future-Proofing Your Installation
If you're considering upgrading your HVAC system in the future, it may be wise to choose a slightly larger pad to accommodate a larger unit down the line. This can save time and effort if you ever need to replace your system.
4. Materials Used in Condenser Pads
While size is crucial, the material of the condenser pad also plays a significant role in its effectiveness and durability. Common materials include:
Concrete Pads
- Durability: Highly durable and resistant to weather conditions.
- Weight: Heavy, providing excellent stability but harder to move.
- Best for: Large units or commercial installations where a permanent, long-lasting solution is needed.

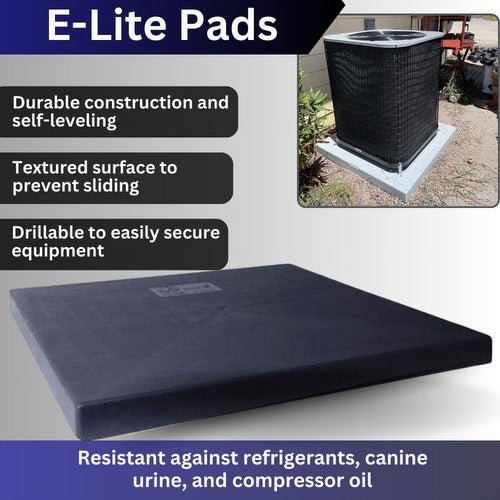

Plastic or Composite Pads
- Durability: Lightweight and resistant to weather and corrosion.
- Weight: Easy to handle and install, though not as heavy as concrete.
- Best for: Residential settings where ease of installation and portability are more important.
Rubber Pads
- Durability: Resistant to weather and vibrations.
- Weight: Lighter than concrete but heavier than plastic.
- Best for: Units that require vibration dampening, such as heat pumps.
Eco-Friendly Pads
- Durability: Made from recycled materials, these pads offer good durability and environmental benefits.
- Weight: Comparable to plastic pads.
- Best for: Environmentally conscious installations, both residential and commercial.
5. Importance of Choosing the Right Size and Material
Selecting the right size and material for your condenser pad is essential for several reasons:
- Efficiency: A properly sized and level pad ensures your HVAC system operates efficiently, reducing the risk of damage or wear due to imbalance or improper support.
- Longevity: The right pad material can protect your unit from moisture, pests, and ground movement, extending the life of your HVAC system.
- Compliance: In some cases, local building codes may require specific pad sizes or materials, particularly for commercial installations. Always check with your local regulations to ensure compliance.
6. Conclusion: Invest in the Right Condenser Pad for Long-Term Benefits
The condenser pad might seem like a minor component in your HVAC system, but it plays a crucial role in ensuring your unit's stability, efficiency, and longevity. By selecting the appropriate size and material, you can protect your investment and ensure that your HVAC system operates smoothly for years to come. Whether you're installing a small residential unit or a large commercial system, choosing the right condenser pad is a simple step that can make a big difference in the performance and durability of your HVAC system.
